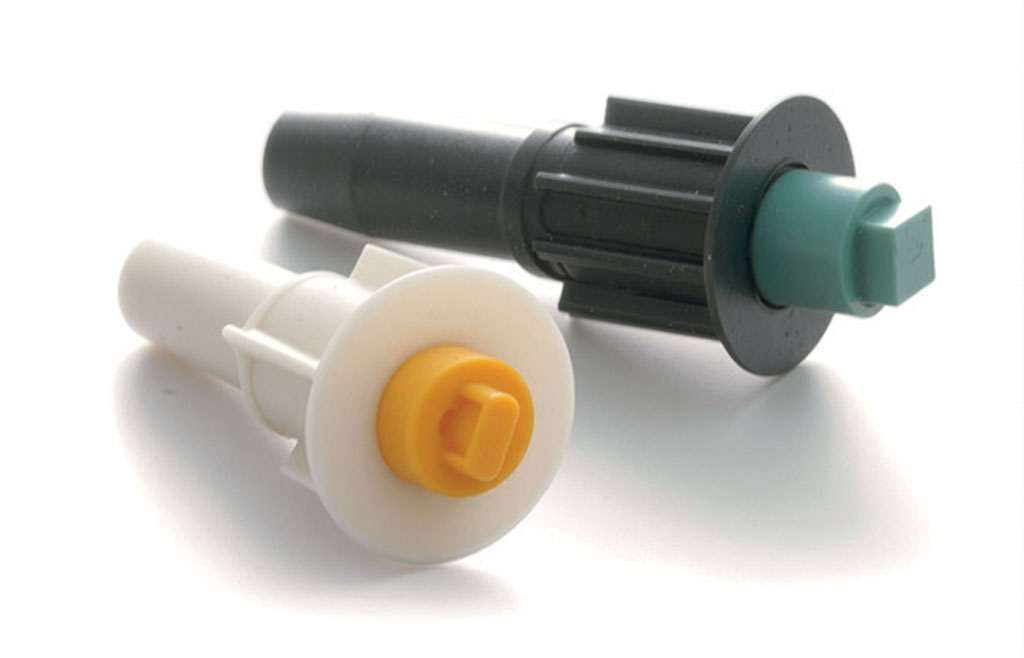

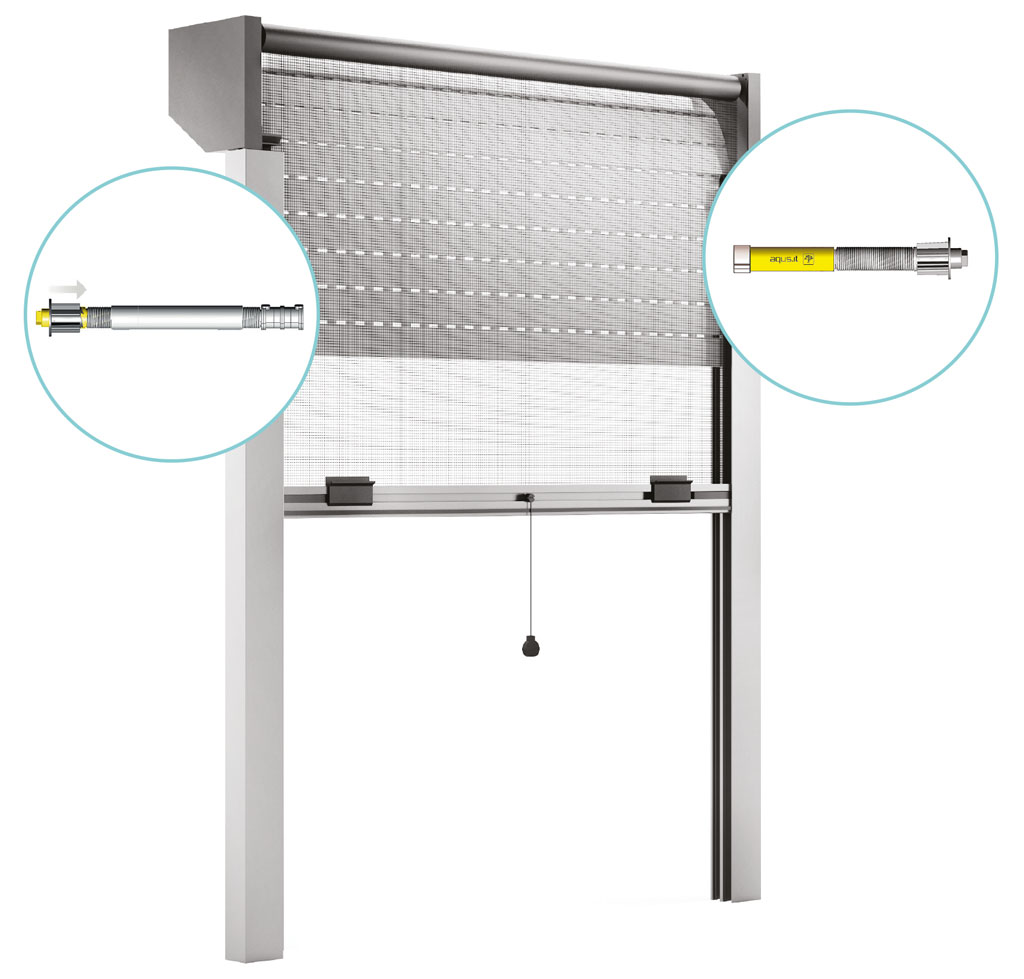

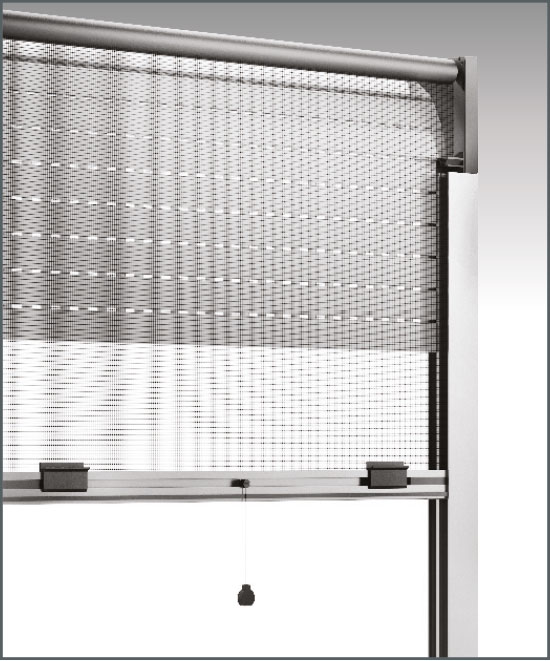

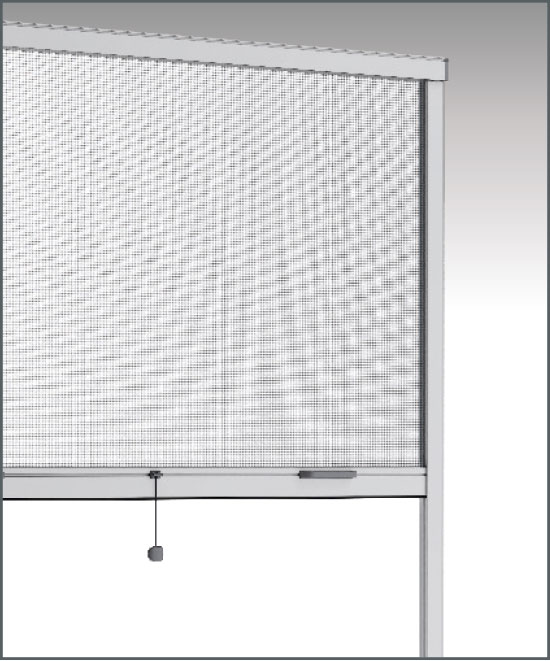

The Aqus spring preloading device simplifies one of the most delicate stages in the manufacturing and installation of retractable insect screens added to the roller shutters cassettes: the spring loading. A technical accessory designed to optimize the production processes and improve the overall safety of the system.
Simple adjustment, safer operations
A device that simplifies the spring tensioning process, making every operation faster, safer and more precise.
Quick and safe installation Reduces production time and increases safety thanks to the possibility of pre-loading the spring before inserting it into the roller shutter box.
Consistent reliability over time Ensures the correct spring tension, protecting the system from wear and malfunctions.
Two-stage spring preloading
Where complex and potentially risky operations were once required, now only two simple steps are needed - resulting in a significant saving of time and effort. Patent No. 2.286.053

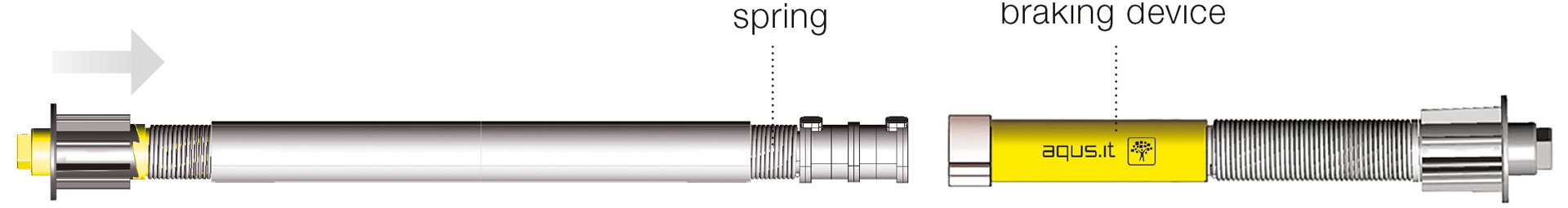

1. Inserting the device into the roller tube

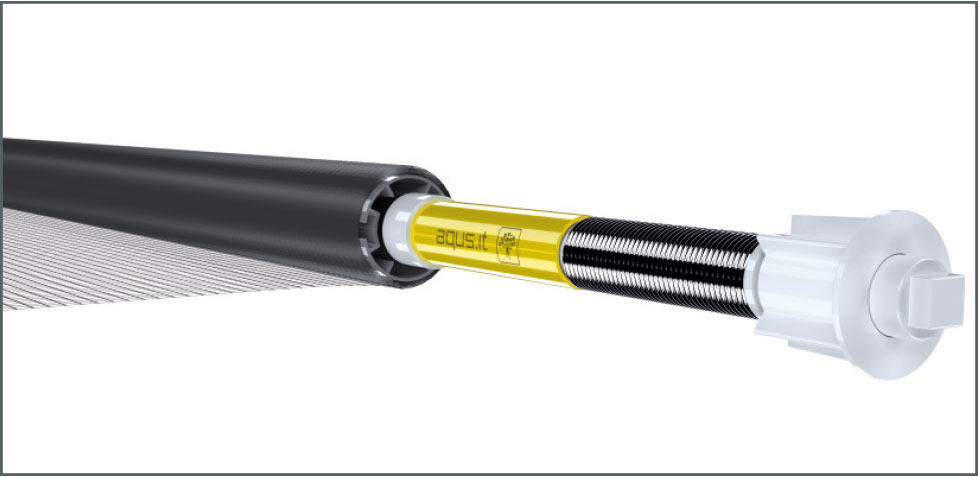

Insert the neutral device with the added brake

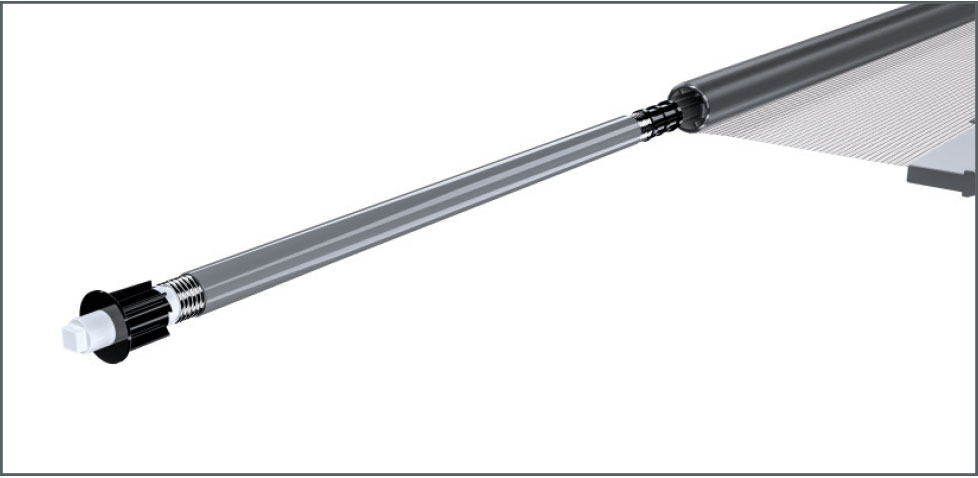

Insert the spring preloading device on the opposite side

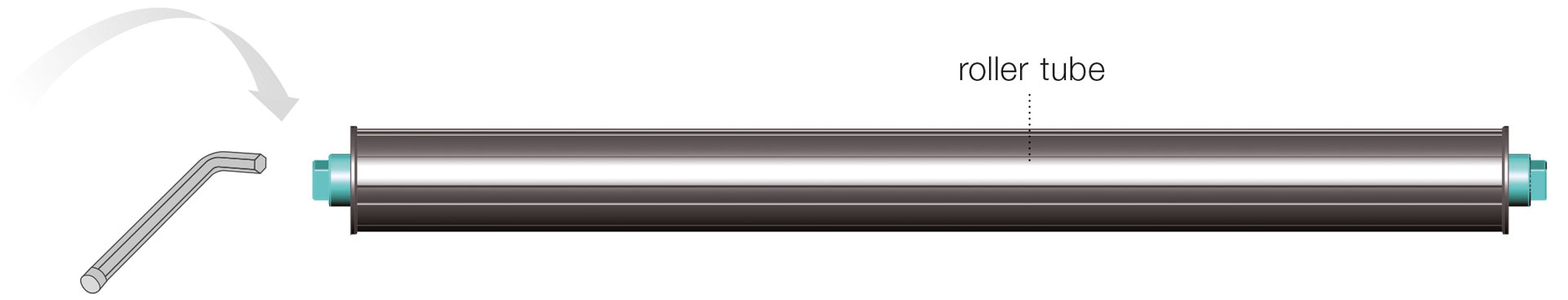

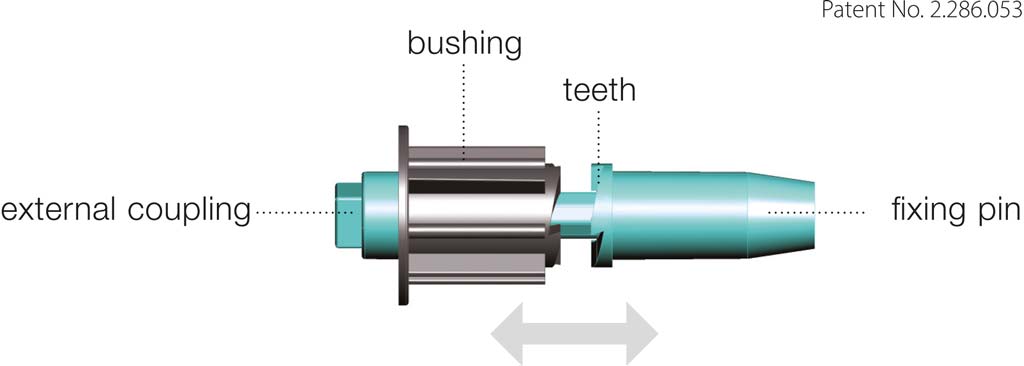

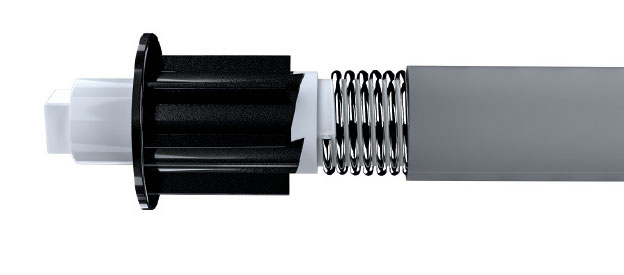

2. Adjust the return spring tension Load the spring by rotating the pin of the preloading device; the toothed ratchet mechanism locks the spring in place and maintains the number of preloaded turns you have set.

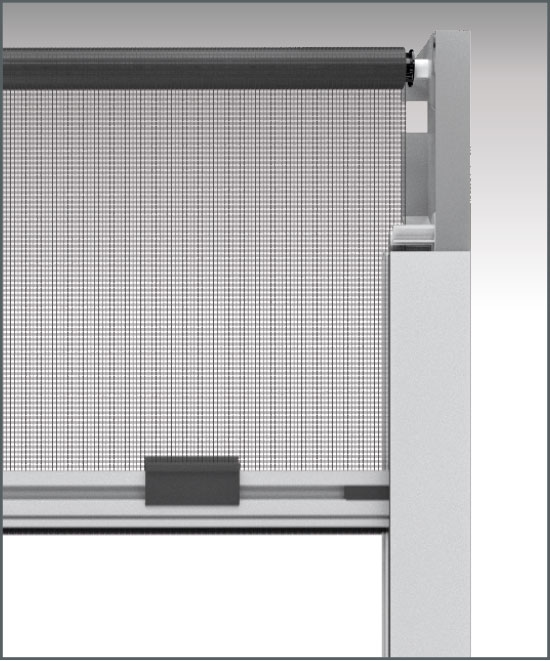

Installation and activation Once the roller tube is inserted into the roller shutter cassette, the device automatically disengages, activating the spring and making the system immediately ready for operation.
Locking during disassembly In case of removal of the roller tube with the flyscreen mesh, the device automatically locks back the spring retraction, ensuring maximum safety during maintenance or servicing.
