SLS-C 34

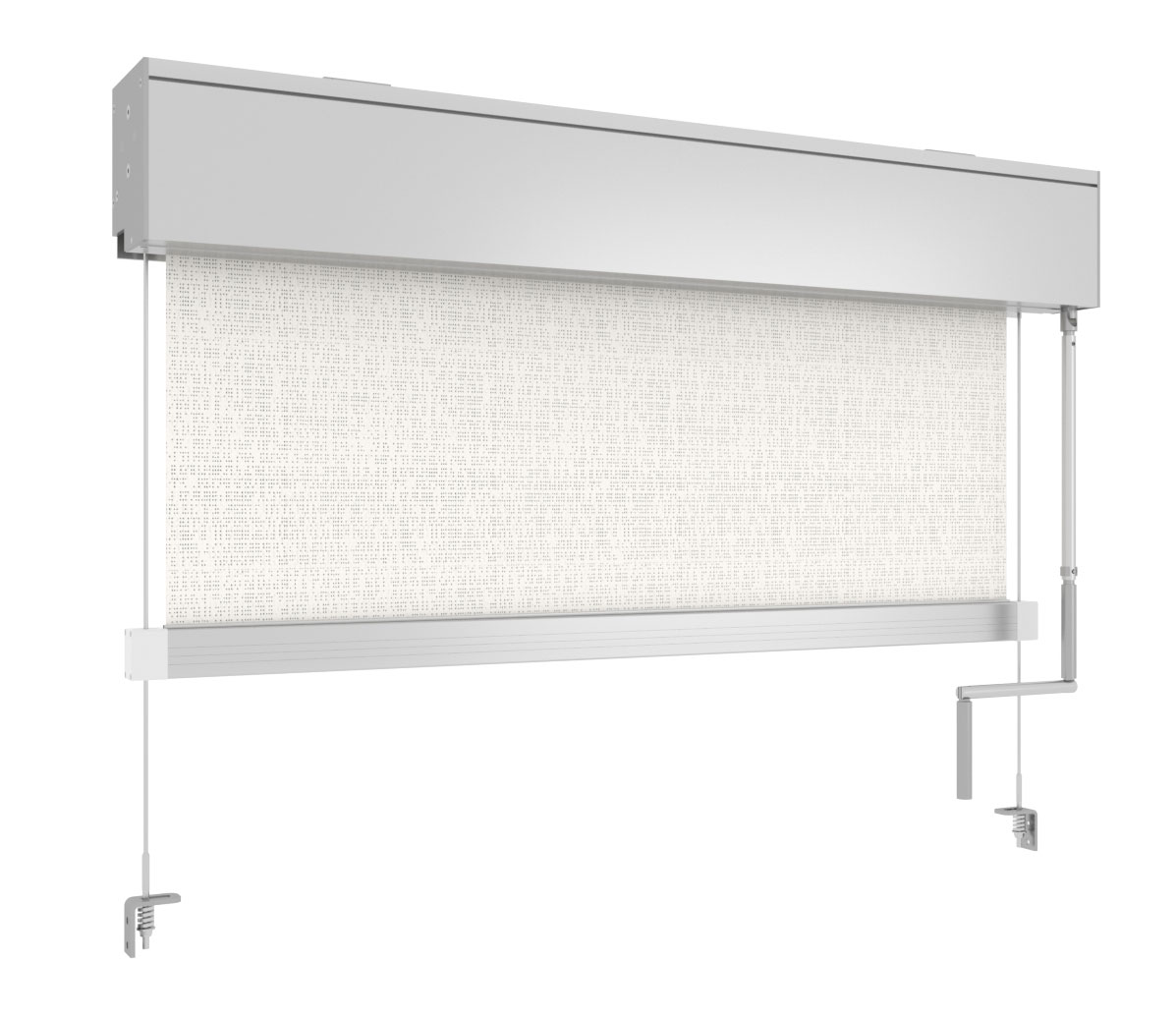

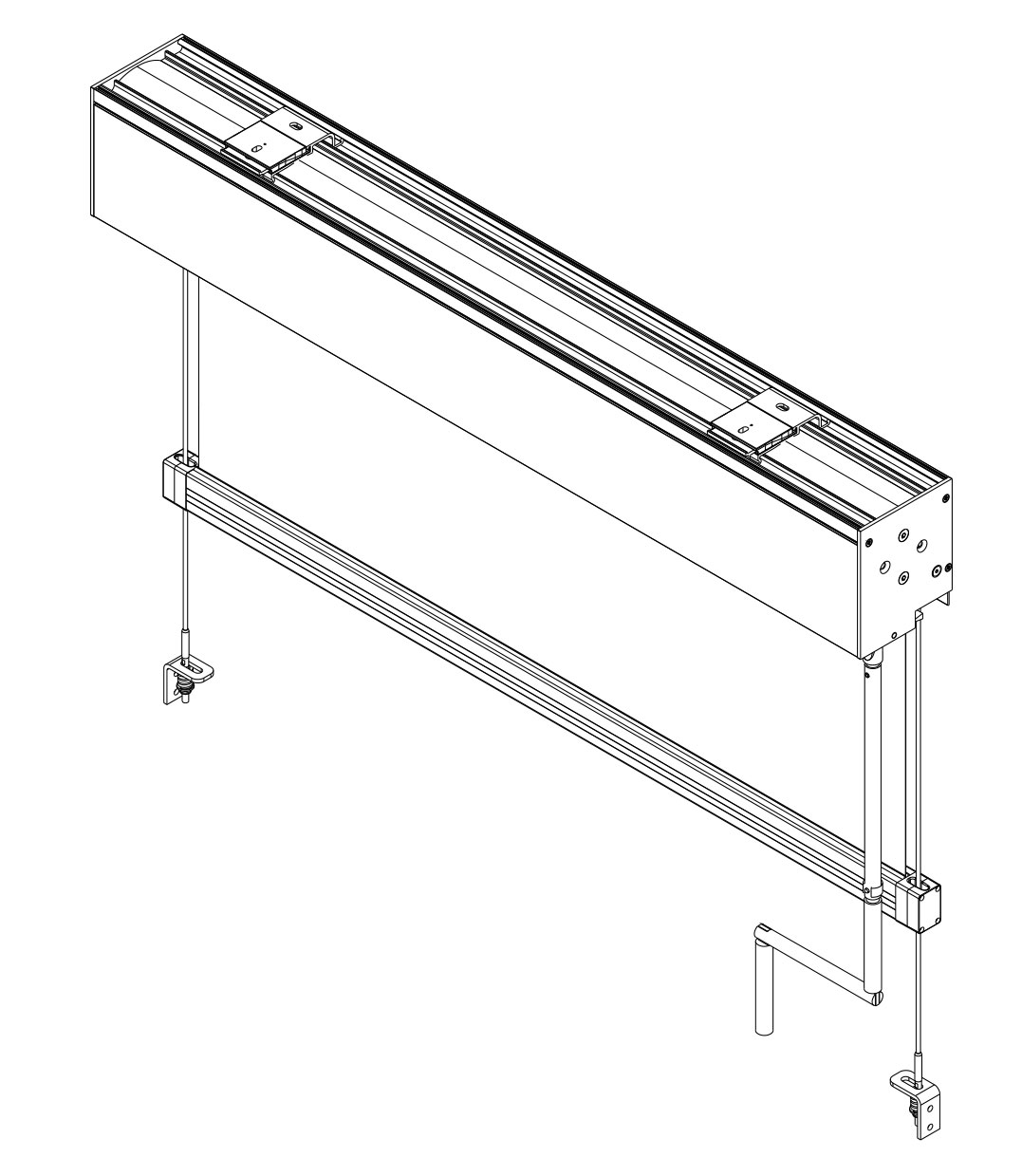

Outdoor cable-guided drop awning with cassette profile

Outdoor roller awning with cable guides, developed to offer solidity, installation versatility — including the possibility of façade fixing — and a high level of architectural integration.

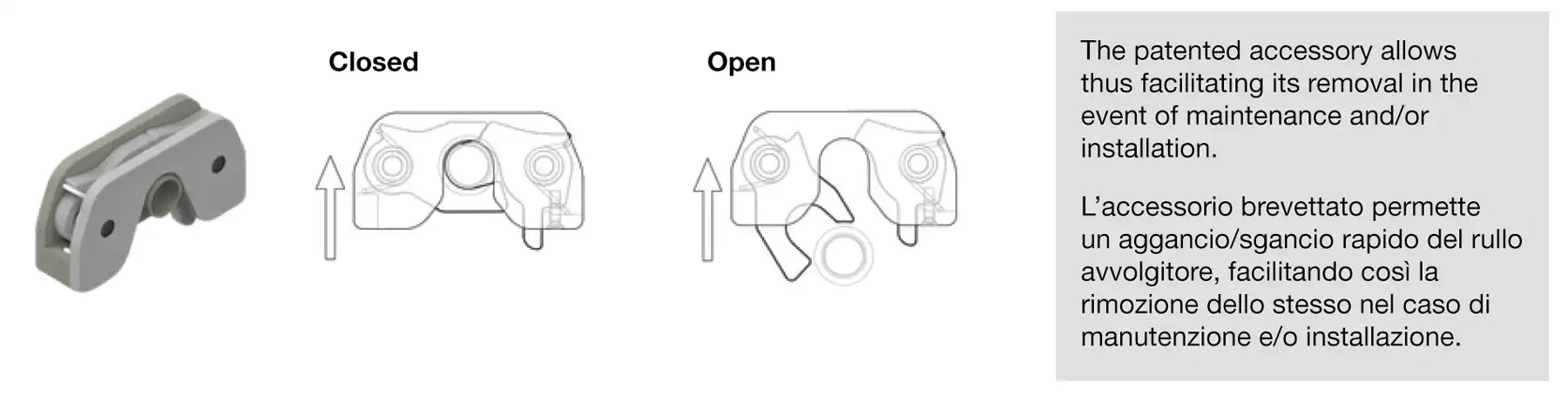

The slender side cables keep the shading visually light, while the various fixing configurations, including front wall installation, increase its design flexibility. The Click Clack support for the roller tube end-pin also simplifies maintenance.

L. 450 cm
H. 375 cm

Standard Features

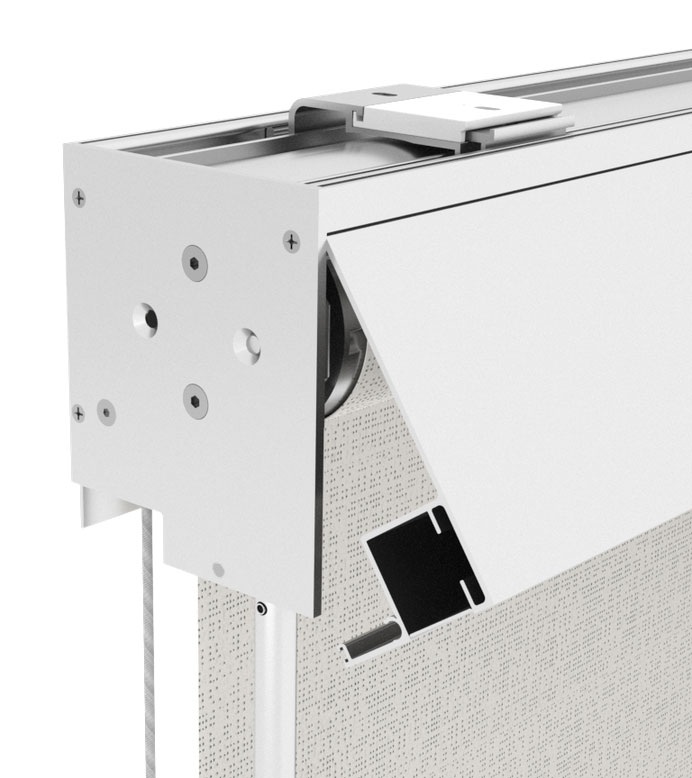

- Gear-winch operation

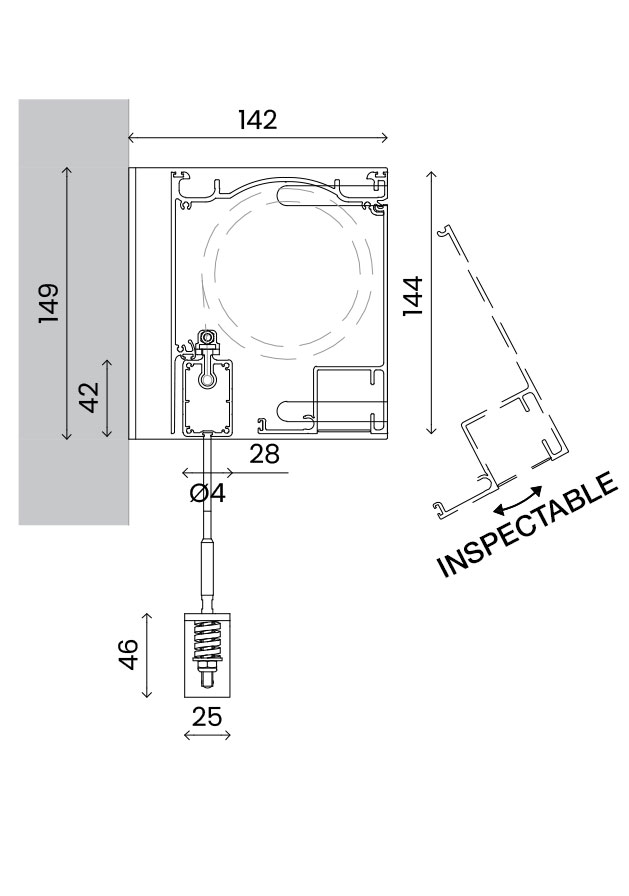

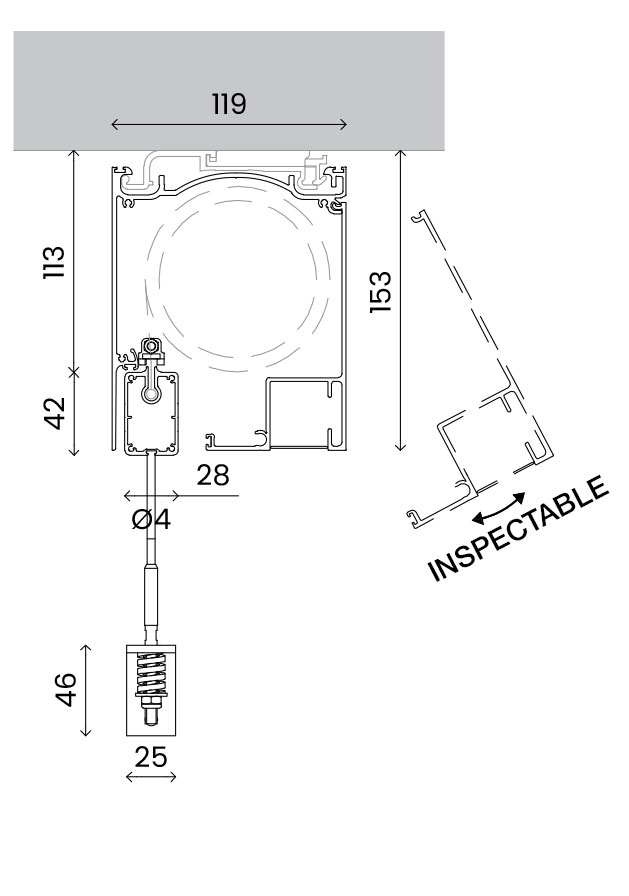

- Inspectable cassette profile

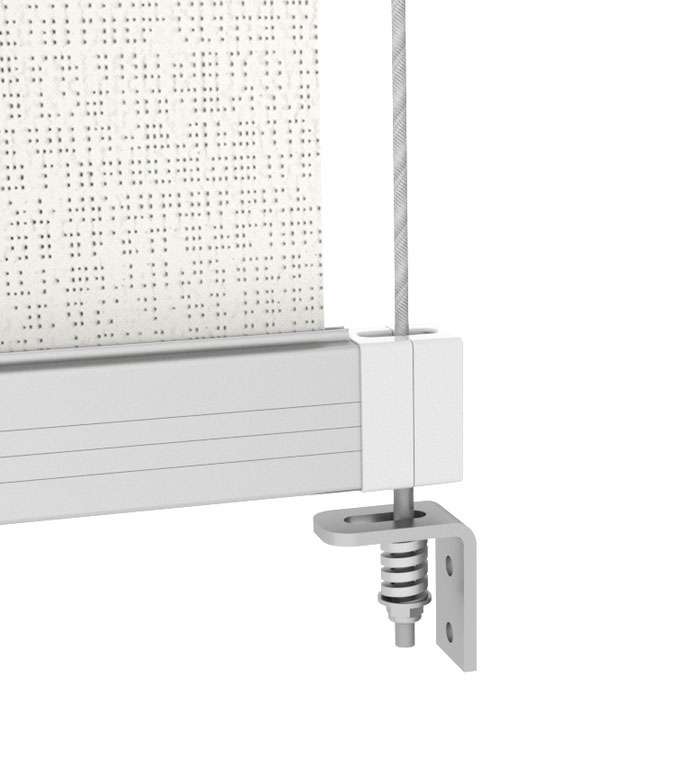

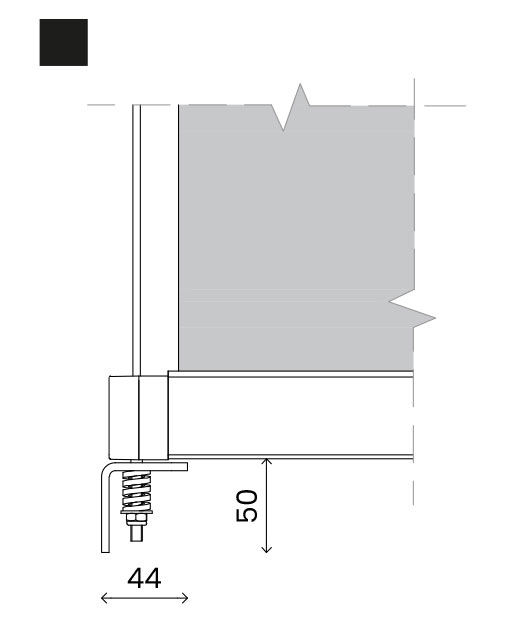

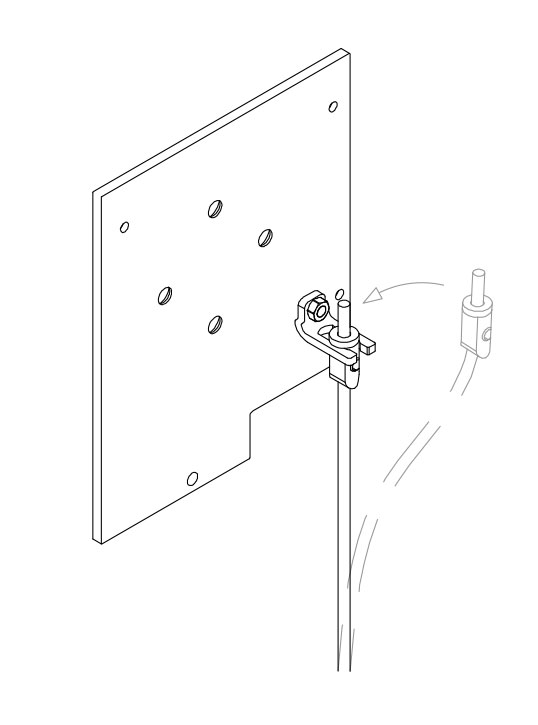

- Cable fixing brackets

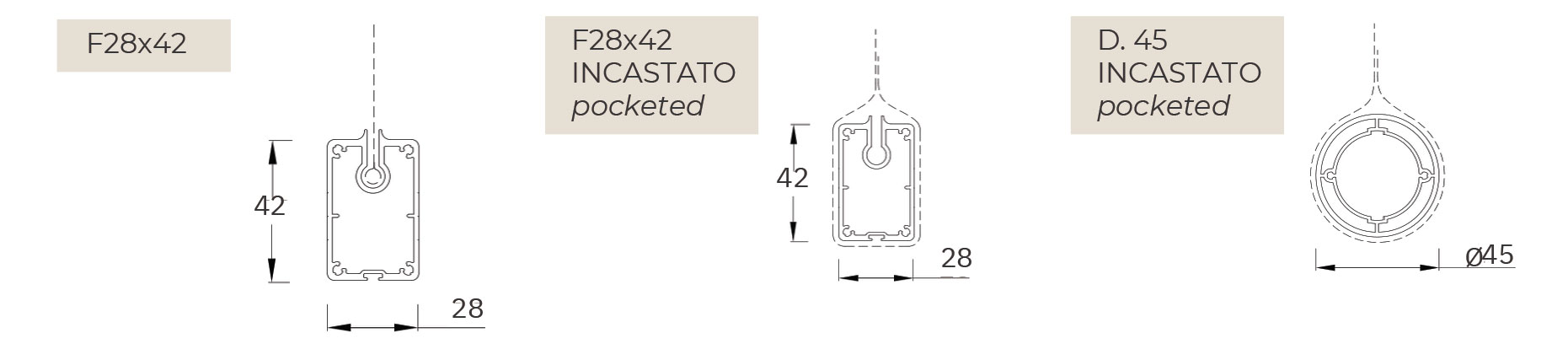

- Concealed bottom bar
- Quick-release supports

Optional

- Motor operation
- Radio motor operation

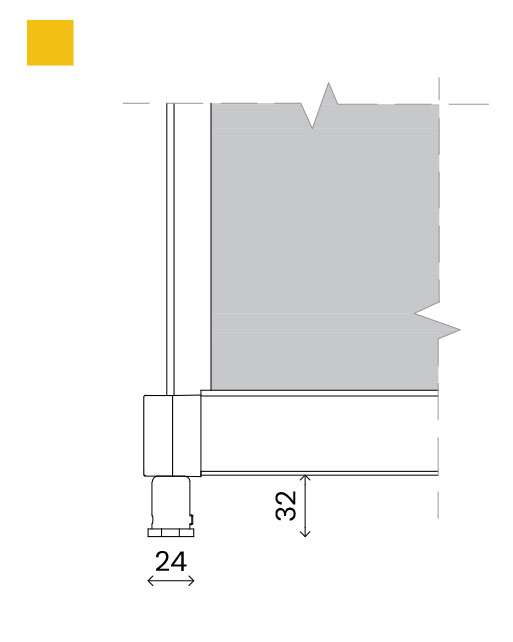

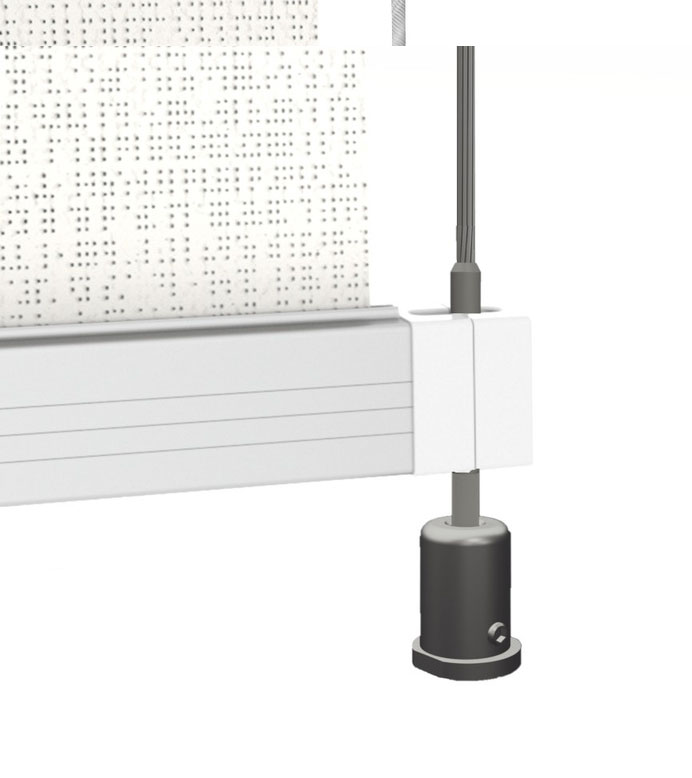

- Floor tensioners

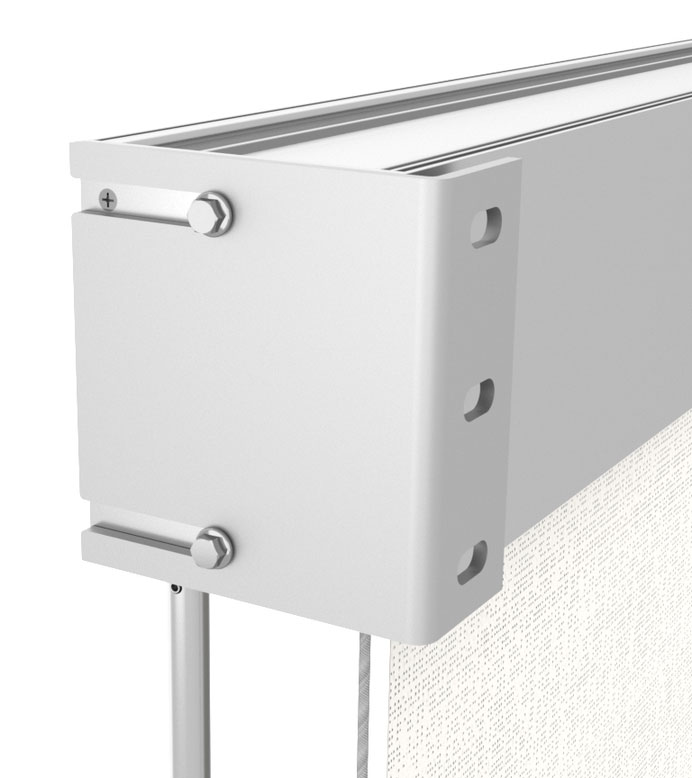

- Front/wall fixing brackets

Standard     Optional

Max dimensions in cm

Fabric

Width x Height

450x375


Notes

Available with manual or motorised operation, with a wide choice of radio controls, automation systems and solar-powered motors.

Colours

White Ral 9016 Matt
Ral 9010 Opaco Matt
Ivory Ral 1013 Matt
Ral 8017 Matt
Dark Gray Ral 7016
Special colours available upon request. Not all colours are available for all supply options.
