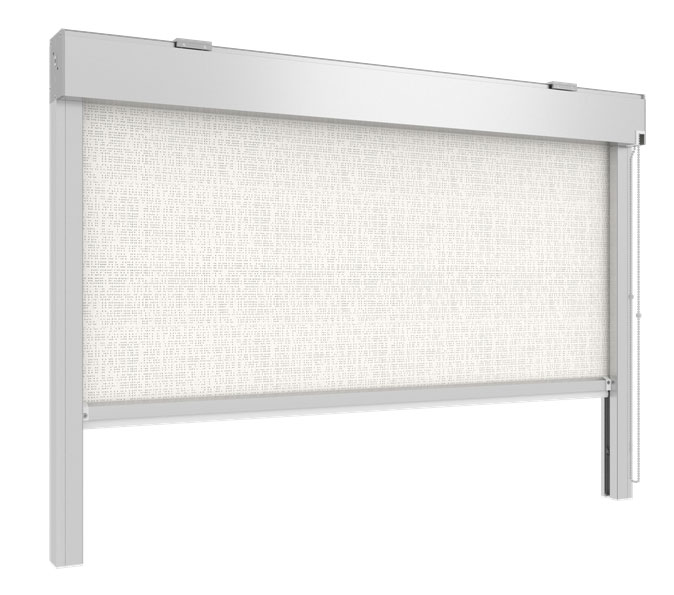

SLS-Z 35

Zip system for inset and front fixing

Outdoor roller blind with ZIP guides that combines particularly compact dimensions with a fully concealed bottom bar for an essential design, ideal when it is important to minimise the system’s overall dimension

Gallery

L. 225 cm
H. 200 cm

Standard Features

- Chain operation
- Self-supporting cassette end-caps

Optional

- Gear-winch operation
- Motor operation
- Radio motor operation

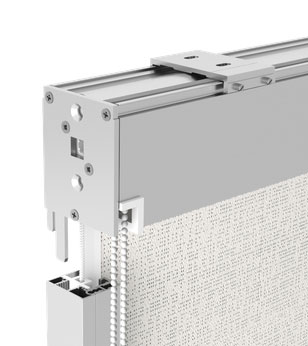

Self-supporting end-caps

Cassette detail

Concealed bottom bar

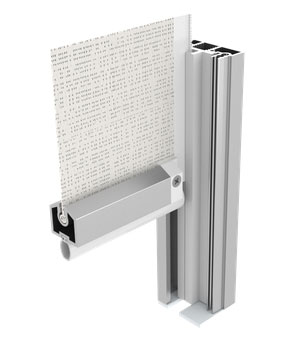

Guide

Standard Optional

Max dimensions in cm

Fabric
Chain - Winch - Motor - Width x Height	225 x 175
T RAIL - Width x Height	225 x 225
Net
Catena - Argano - Motore - Width x Height	225 x 200
T RAIL - Width x Height	225x225

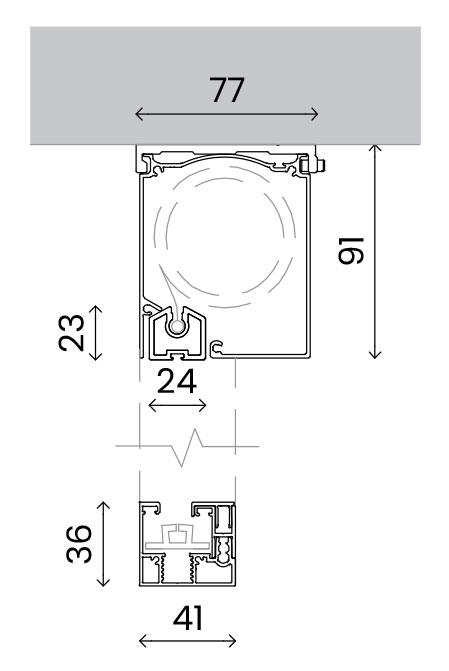

Ceiling

Self-supporting

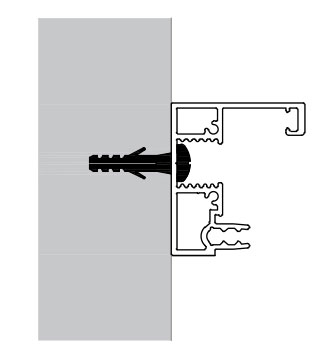

Guide fixing - inset

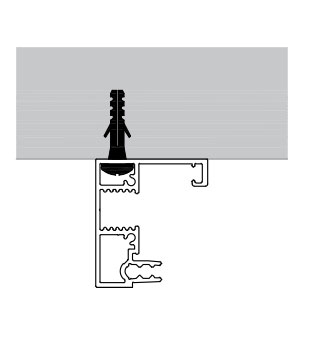

Front

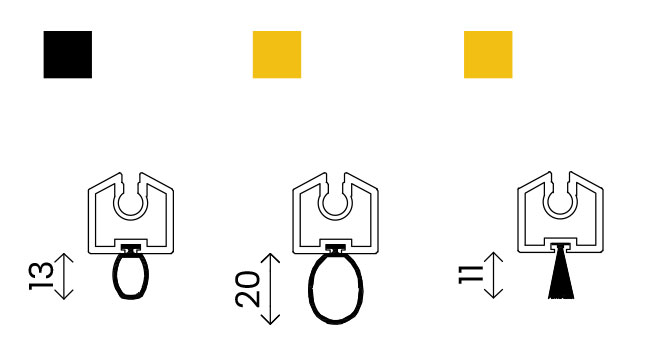

Arrester

Notes

The ZIP system keeps the fabric correctly tensioned and stable during movement. The T-Rail solution allows its control and evenness to be further improved, while keeping the structure discreet and easy to integrate into the architecture.

Colours

White Ral 9016 Matt

Ral 9010 Opaco Matt

Ivory Ral 1013 Matt

Ral 8017 Matt

Dark Gray Ral 7016

Special colours available upon request. Not all colours are available for all supply options.
