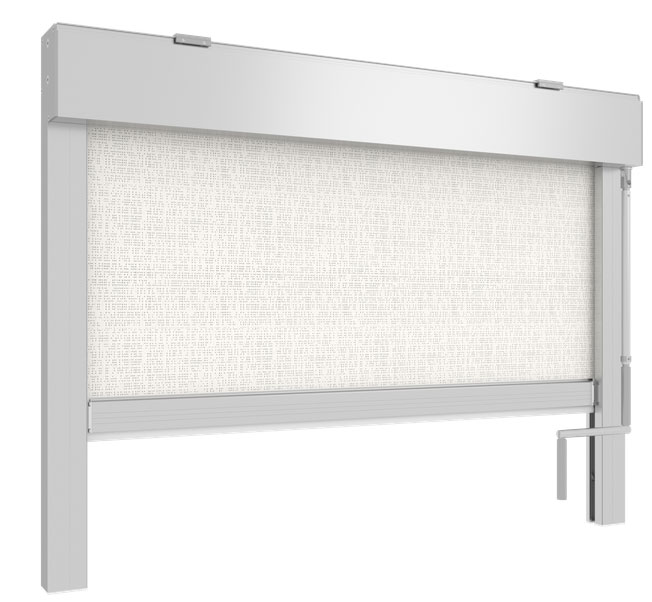

SLS-Z 40N

Zip system for inset and front fixing

Outdoor roller blind with ZIP guides, featuring a robust and tidy structure. The cassette profile fully encloses the winding system, including the concealed bottom bar, helping to protect the components and maintain a clean aesthetic.

Gallery

L. 260 cm
H. 240 cm

Standard Features

- Manovra ad argano
- Tenoni autoportanti
- Fondale a scomparsa- Gear-winch operation
- Self-supporting cassette and-caps
- Concealed bottom bar

Optional

- Motor operation
- Radio motor operation
- LED strip

Bottom bar detail

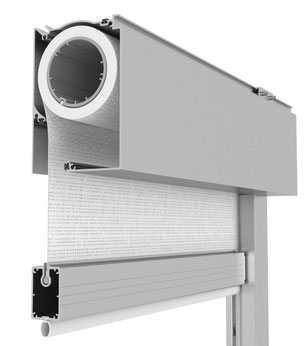

Cassette detail

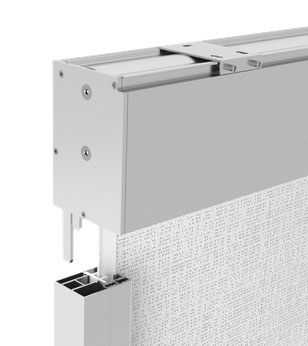

Self-supporting end-caps

Guide

Standard Optional

Max dimensions in cm

Fabric
Winch - Motor - Width x Height	260 x 240
T RAIL - Width x Height	260 x 275
Net
Winch - Motor - Width x Height	260 x 240
T RAIL - Width x Height	260 x 275

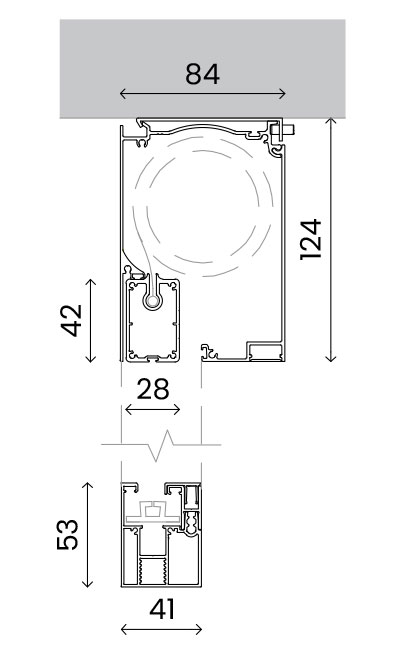

Ceiling

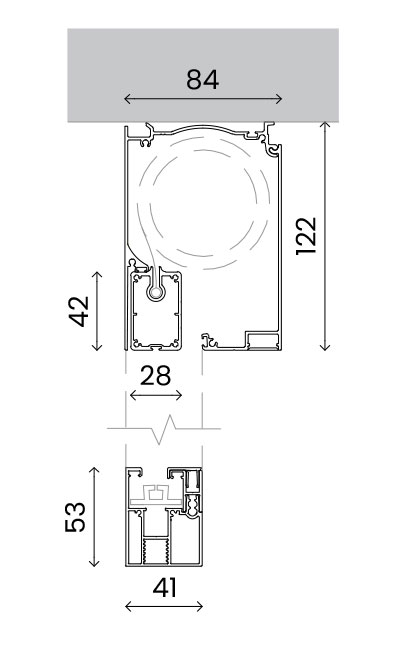

Self-supporting

Guide fixing - inset

Guide fixing - Front

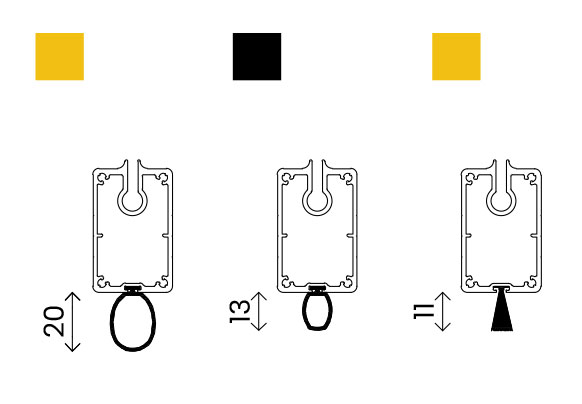

Arrester

Notes

The ZIP guides ensure precise sliding and correct tensioning of the shading, while the T-Rail system delivers even more advanced performance in managing the evenness of the fabric.

Colours

White Ral 9016 Matt

Ral 9010 Opaco Matt

Ivory Ral 1013 Matt

Ral 8017 Matt

Dark Gray Ral 7016

Special colours available upon request. Not all colours are available for all supply options.
