SLS-Z DR

Zip system with double roller and fit for mosquito-net Magnum 31 add-on

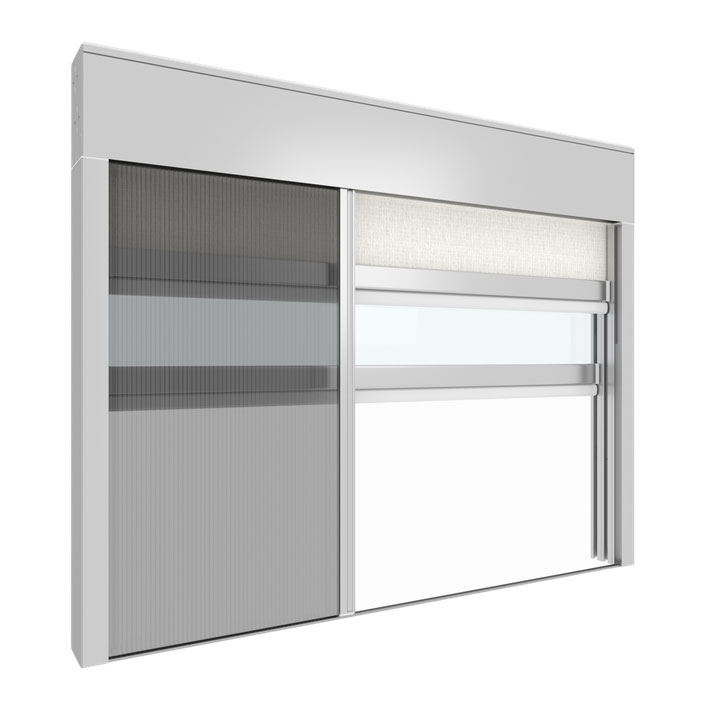

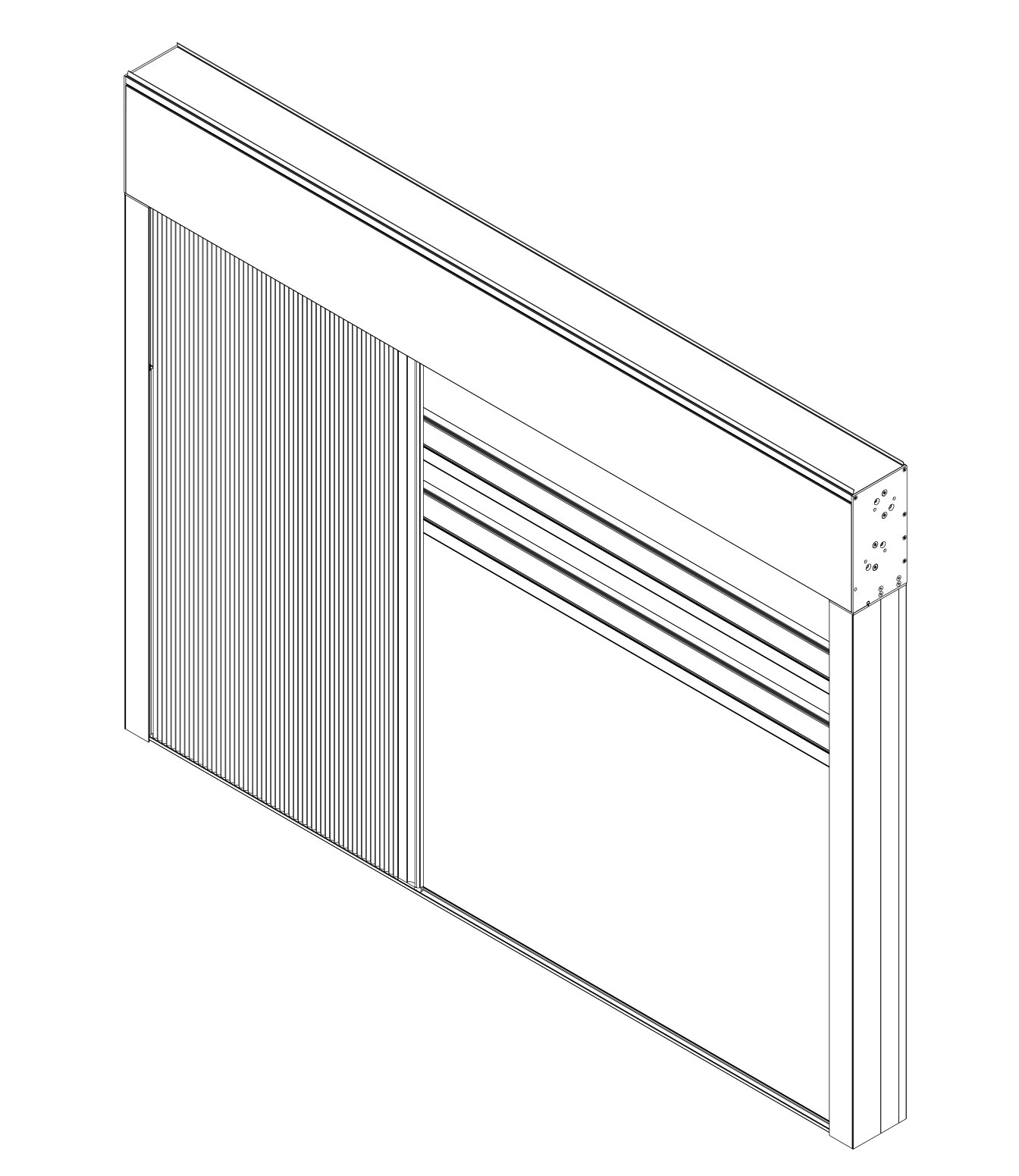

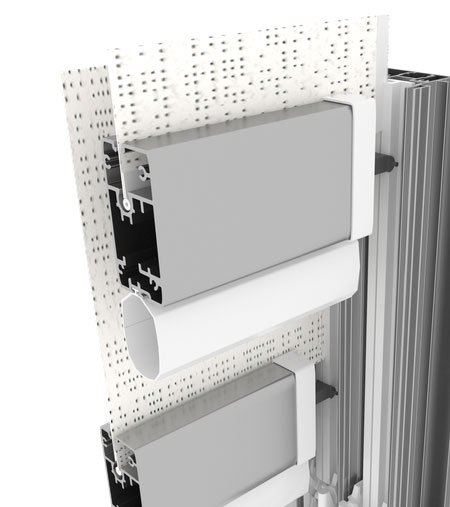

Outdoor roller system designed to integrate two different shading screens within a single structure. The double roller makes it possible to combine fabrics with different characteristics, concentrating several functions in a single architectural element. The two shading screens run on independent ZIP systems, maintaining a tidy and consistent appearance. It is also possible to integrate the Magnum pleated insect screen, further expanding the system’s versatility.

L. 475 cm
H. 300 cm

Standard Features

- Gear-winch operation

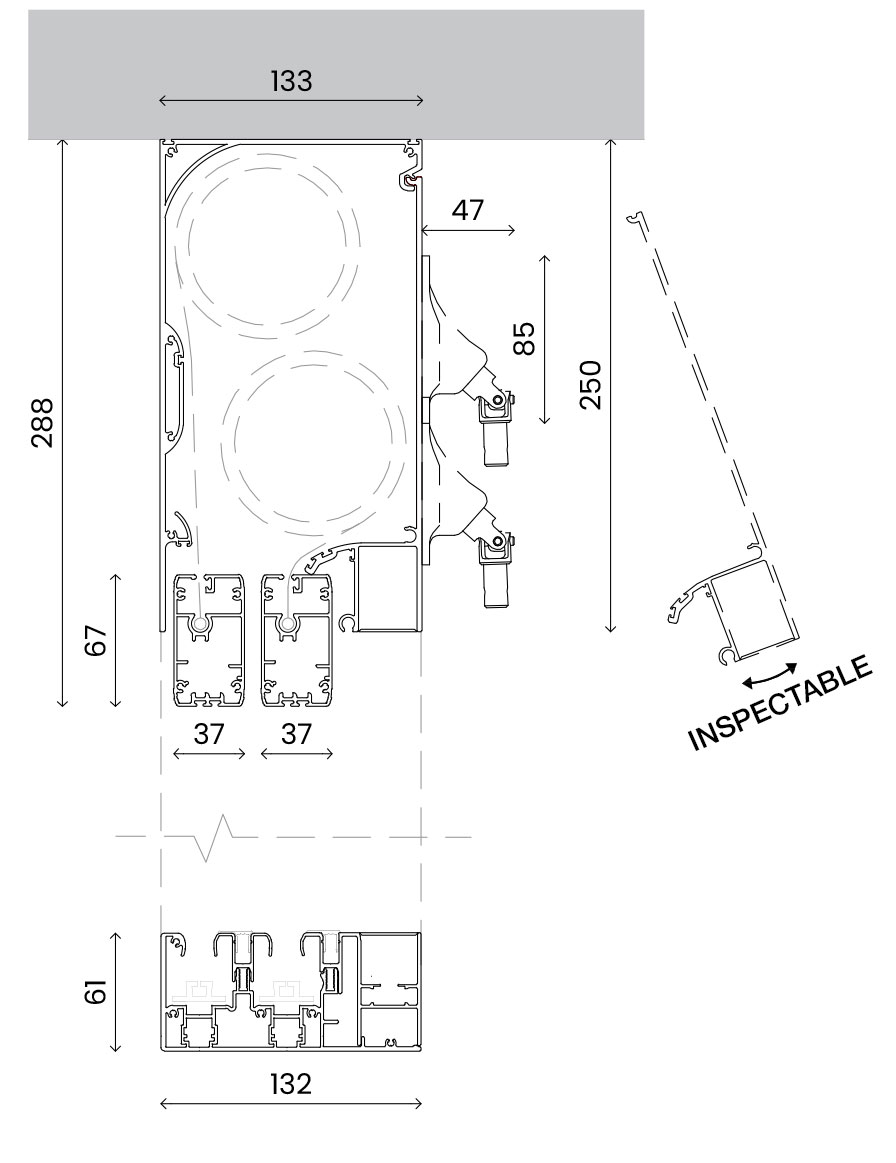

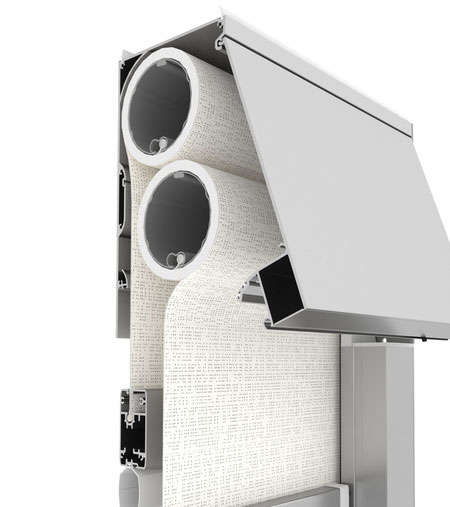

- Inspectable cassette profile

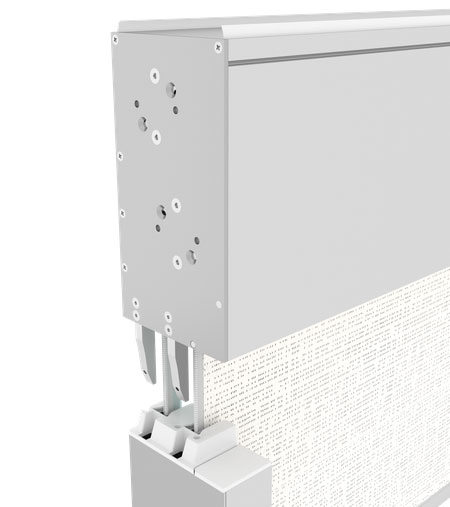

- Self-supporting cassette end-caps

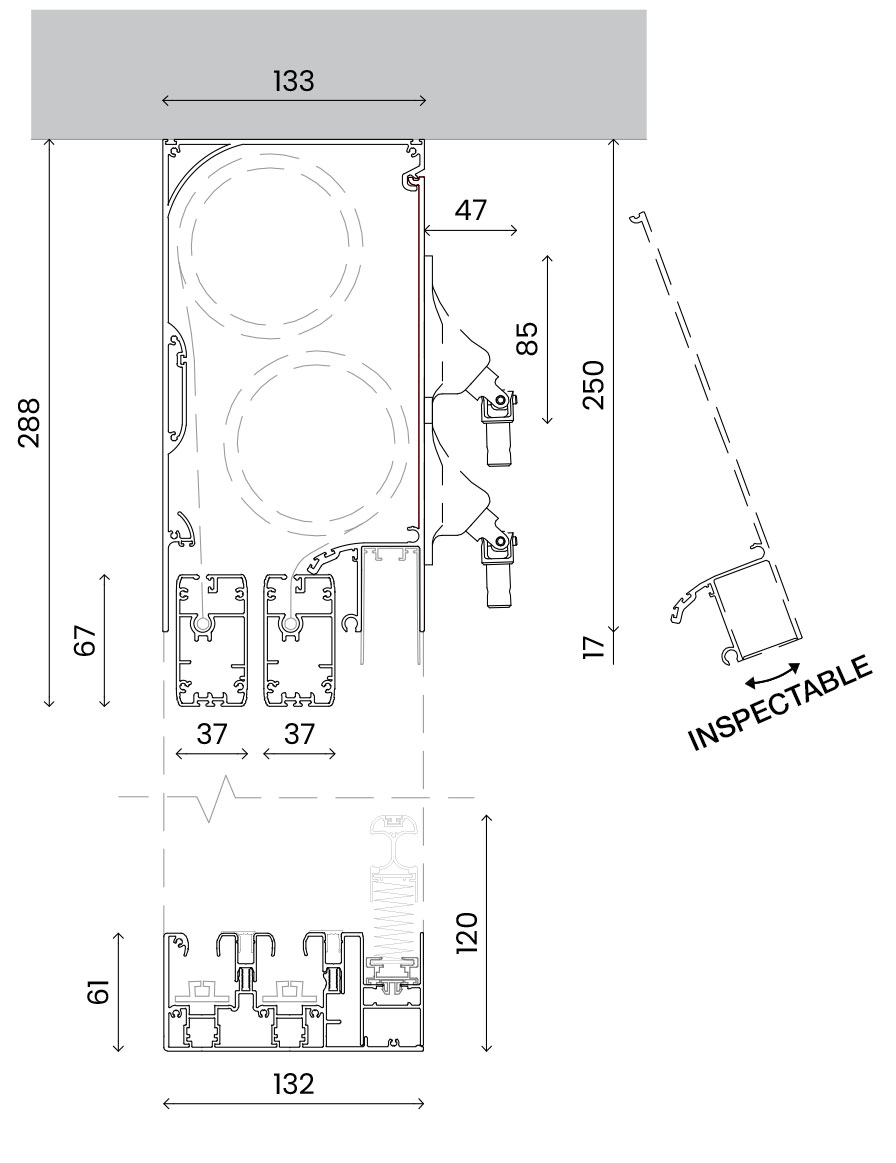

- Mosquito-net pre-equipment

Optional

- Motor operation
- Radio motor operation
- Automatic WB block

Standard     Optional

Max dimensions in cm

Fabric

Width x Height

400 x 300

Width x Height

475 x 275

Net

Width x Height

475 x 300

Crystal

Width x Height

400 x 300

Width x Height

425 x 275

Width x Height

450 x 250


Notes

Available with manual or motorised operation, with a wide choice of radio controls, automation systems and solar-powered motors.

Colours

White Ral 9016 Matt
Ivory Ral 1013 Matt
Gray Ral 9006 Matt
Dark Gray Ral 7016
Corten
Special colours available upon request. Not all colours are available for all supply options.
