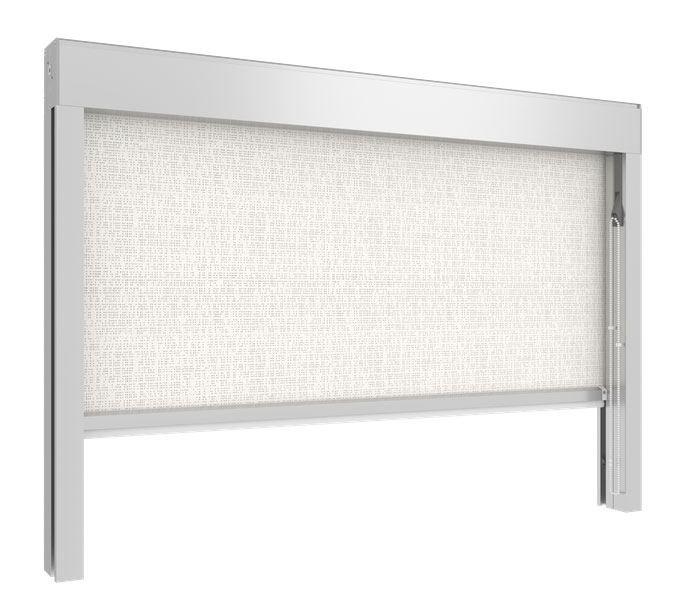

SLS-ZB 36

Recessed zip system

Outdoor roller awning with ZIP guides, designed for recessed installation, ideal when the aim is to integrate the shading into the architecture while minimising its visual impact.

L. 225 cm
H. 200 cm

Standard Features

- Motor operation
- Self-supporting cassette end-caps

Optional

- Radio motor operation

Bottom bar detail

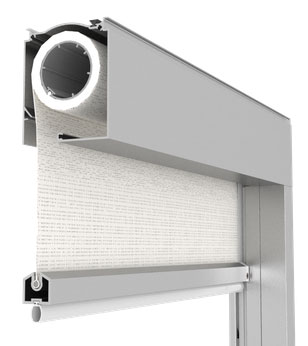

Cassette detail

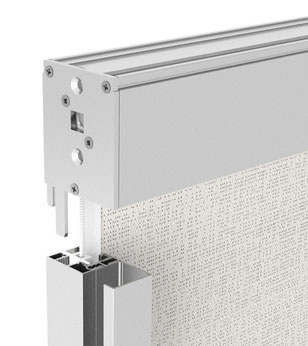

Self-supporting end-caps

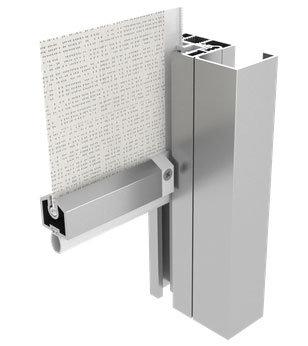

Guide

Standard Optional

Max dimensions in cm

Fabric
Motore - Width x Height	225 x 175
T RAIL - Width x Height	225 x 225
Net
Motore - Width x Height	225 x 200
T RAIL - Width x Height	225 x 225

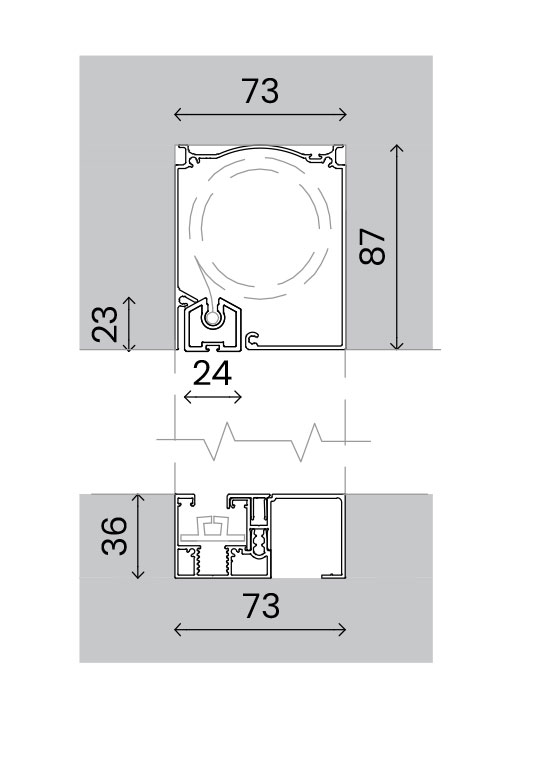

Self-supporting

Guide fixing - inset

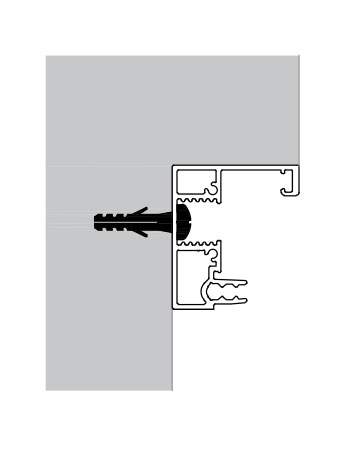

Guide fixing - Front

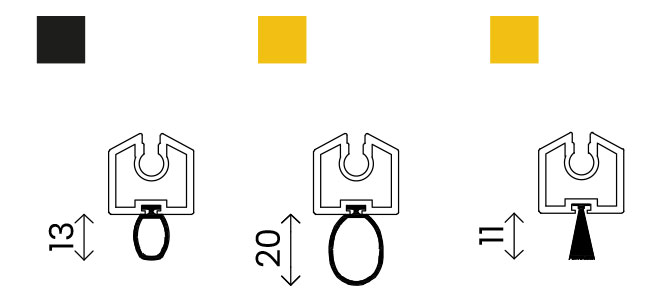

Arrester

Notes

The particularly compact dimensions make the SLS-ZB 36 suitable even for smaller spaces, while the ZIP system ensures stability and correct tensioning of the fabric. The T-Rail solution allows its performance to be further increased.

Colours

Ral 9010 Opaco Matt

Ral 8019 Opaco Matt

White Ral 9016 Matt

Ivory Ral 1013 Matt

Dark Gray Ral 7016

Special colours available upon request. Not all colours are available for all supply options.
