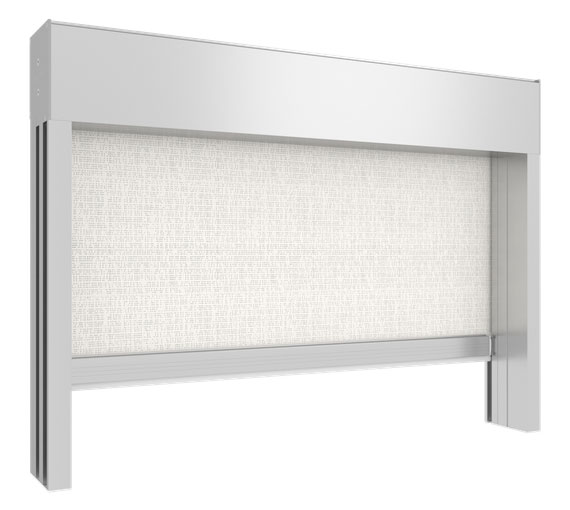

SLS-ZB 52

Recessed zip system

Roller awning with ZIP guides, designed for the most demanding architectural applications and for protecting large openings.

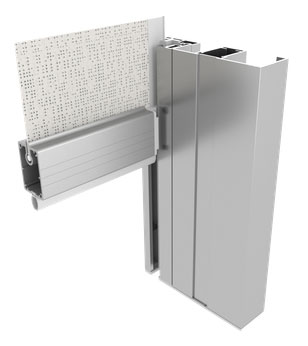

The robust structure makes it possible to combine high performance with recessed integration, maintaining a clean aesthetic even in larger-scale projects. The ZIP system ensures correct tensioning and stability of the fabric during movement. For even more advanced performance, the T-Rail solution is also available, designed to further improve the distribution of the fabric’s tension.

L. 650 cm
H. 500 cm

Standard Features

- Motor operation

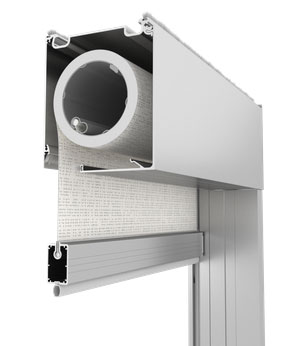

- Inspectable cassette profile

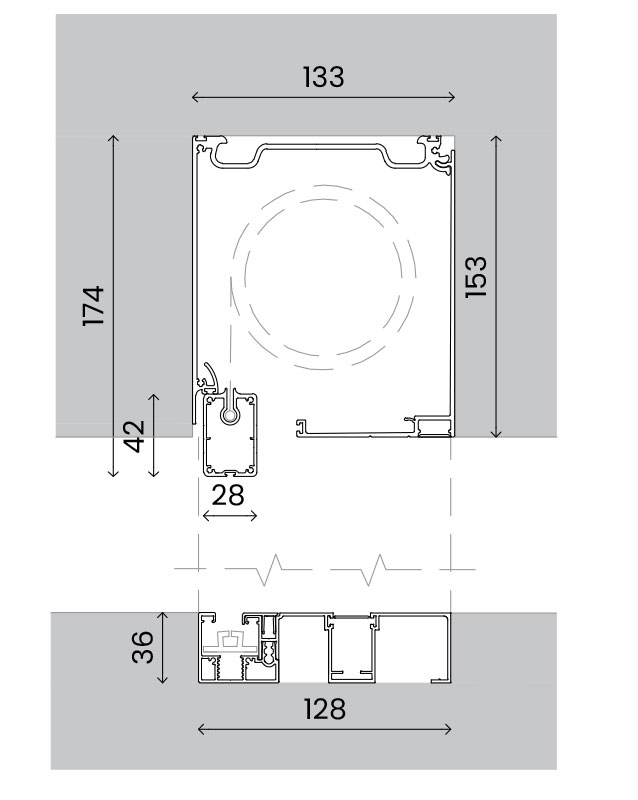

- Self-supporting cassette end-caps

Optional

- Radio motor operation

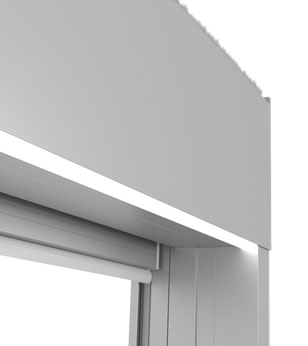

- LED strip

Standard     Optional

Max dimensions in cm

Fabric

Width x Height

450 x 500

Width x Height

475 x 400

Width x Height

650 x 325

Net

Width x Height

450 x 500

Width x Height

475 x 450

Width x Height

650 x 325


Notes

Available with motorised operation, with a wide choice of radio controls, automation systems and solar-powered motors

Colours

Ral 9010 Opaco Matt
Ral 8019 Opaco Matt
White Ral 9016 Matt
Ivory Ral 1013 Matt
Dark Gray Ral 7016
Special colours available upon request. Not all colours are available for all supply options.
