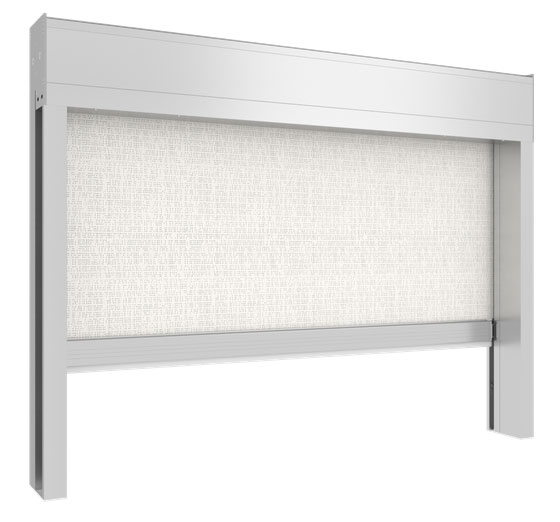

SLS-ZB 51

Recessed zip system

Outdoor roller awning with ZIP guides, designed to combine robustness, architectural integration and particularly easy maintenance.

L. 450 cm
H. 275 cm

Standard Features

- Motor operation
- Inspectable cassette profile
- Concealed bottom bar
- Self-supporting cassette end-caps

Optional

- Radio motor operation

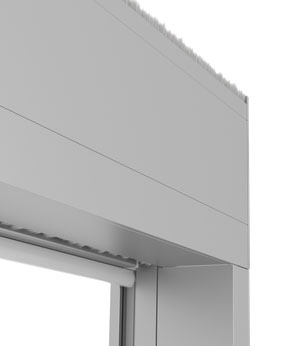

Bottom bar detail

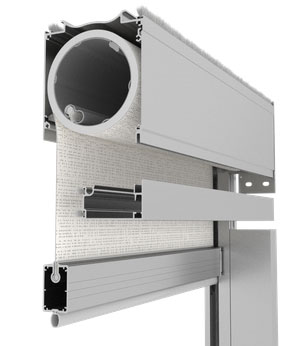

Cassette detail

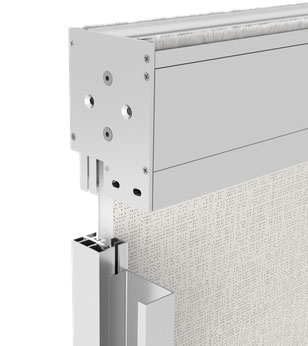

Self-supporting end-caps

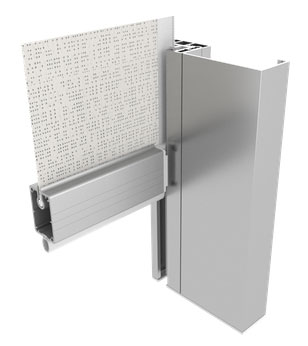

Guide

Standard Optional

Max dimensions in cm

Fabric
Width x Height	400 x 275
Width x Height	450 x 250
Net
Width x Height	400 x 275
Width x Height	450 x 250

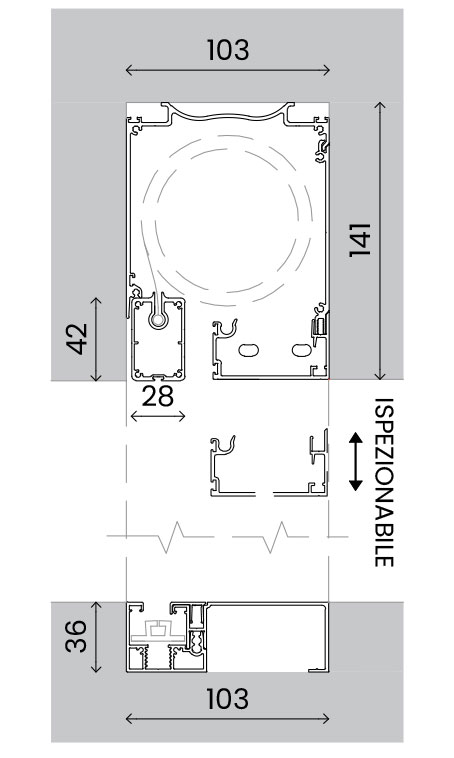

Self-supporting

Guide fixing - inset

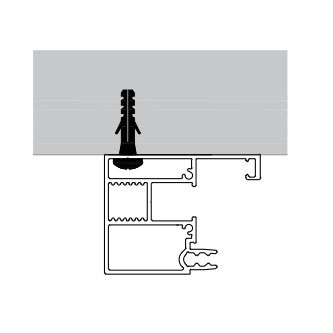

Guide fixing - Front

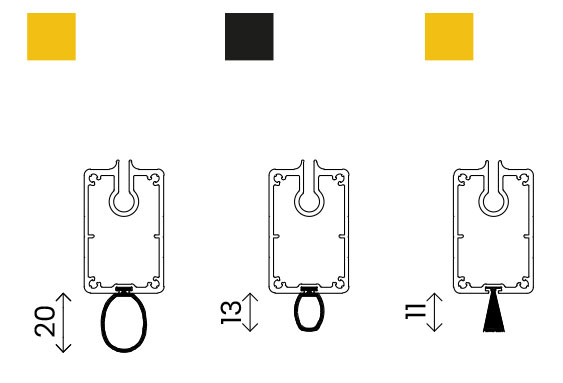

Arrester

Notes

The cassette profile, inspectable from below, allows easy access to the components even in recessed installations. The exclusive Click Clack type tube-end-cap support also facilitates engaging and releasing the roller tube, simplifying installation and maintenance work.

Colours

White Ral 9016 Matt

Ral 9010 Opaco Matt

Ral 8019 Opaco Matt

Ivory Ral 1013 Matt

Dark Gray Ral 7016

Special colours available upon request. Not all colours are available for all supply options.
