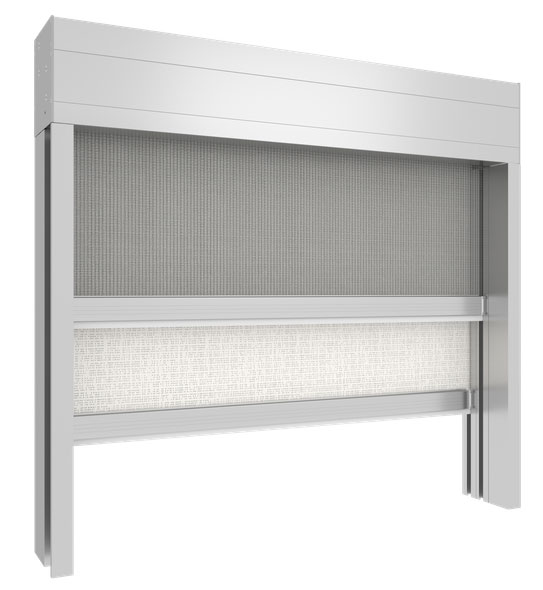

SLS-ZB DR

Recessed zip system with double roller

A double-roller system with ZIP guides and recessed installation, designed to manage two different shading screens within a single structure.
The two fabrics can be used independently, offering more flexible management of light and privacy. The inspectable cassette profile and the Click Clack type tube-end-cap support also facilitate installation and maintenance operations.

L. 325 cm
H. 300 cm

Standard Features

- Motor operation
- Inspectable cassette profile
- Self-supporting cassette end-caps

Optional

- Radio motor operation

Bottom bar detail

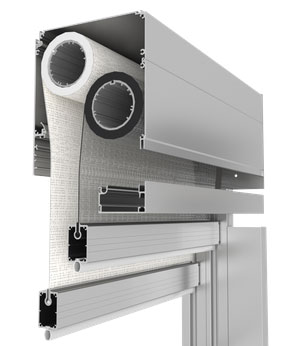

Cassette detail

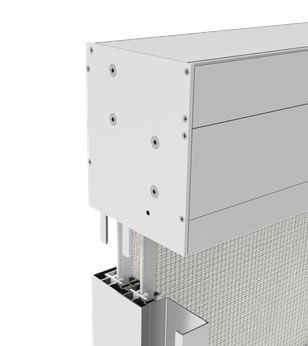

Self-supporting end-caps

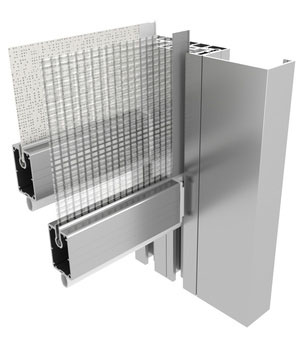

Guide

Standard Optional

Max dimensions in cm

Fabric
Width x Height	275 x 300
Width x Height	300 x 275
Width x Height	350 x 250
Width x Height	400 x 200
Net
Width x Height	275 x 300
Width x Height	300 x 275
Width x Height	350 x 250
Width x Height	400 x 200

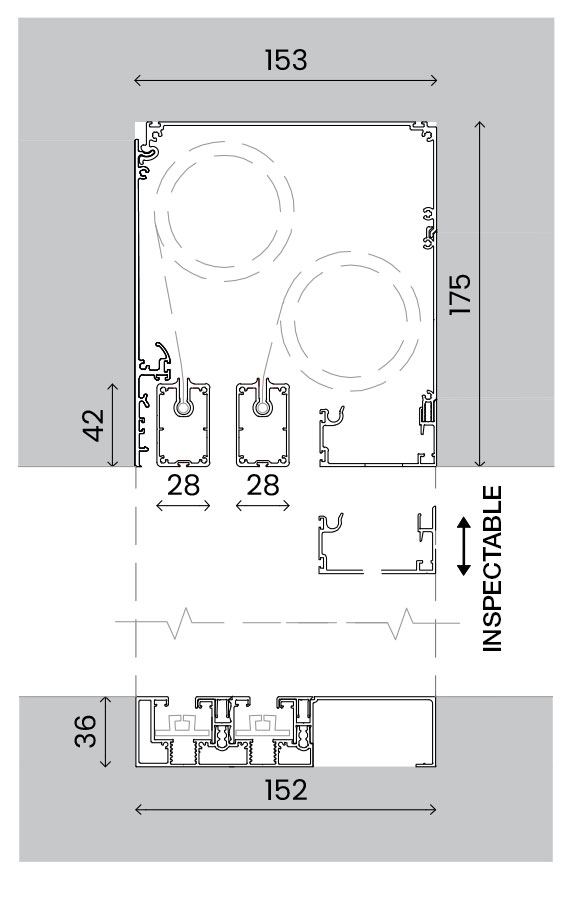

Self-supporting

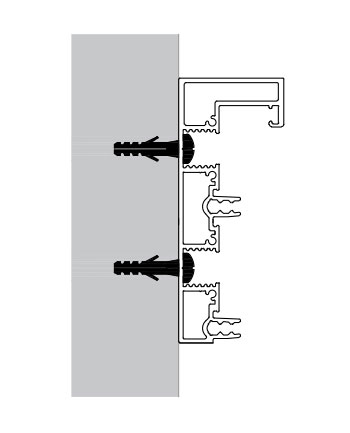

Assembly detail - inset

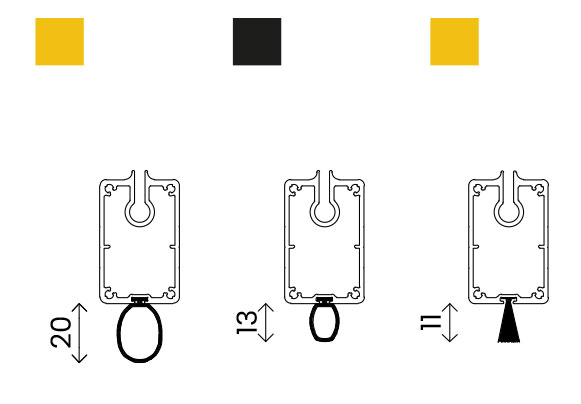

Draft Seal

Notes

Available with motorised operation, with a wide choice of radio controls, automation systems and solar-powered motors.

Colours

White Ral 9016 Matt

Ral 9010 Opaco Matt

Ral 8019 Opaco Matt

Ivory Ral 1013 Matt

Dark Gray Ral 7016

Special colours available upon request. Not all colours are available for all supply options.
