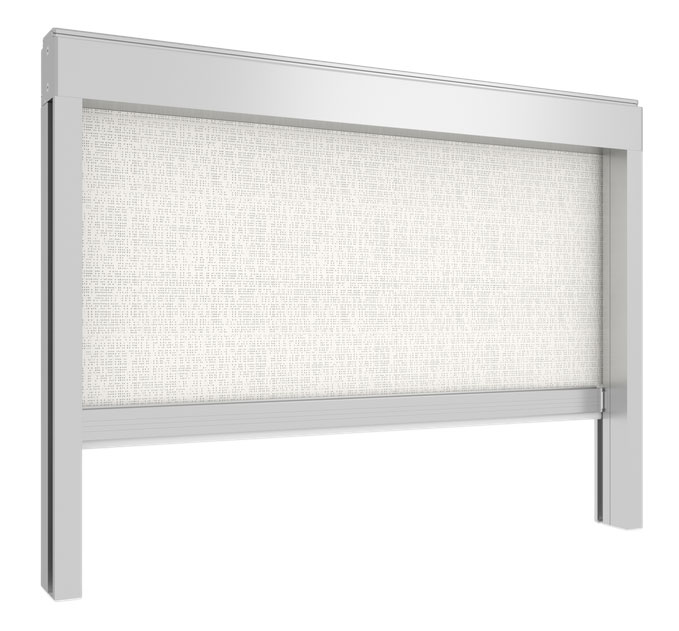

SLS-ZB 42

Recessed zip system

Outdoor roller awning with ZIP guides, developed to be recessed into the architectural structure. The compact cassette profile results in a discreet shading system, leaving mainly the fabric visible.

L. 260 cm
H. 240 cm

Standard Features

- Motor operation
- Self-supporting cassette end-caps

Optional

- Radio motor operation

Bottom bar detail

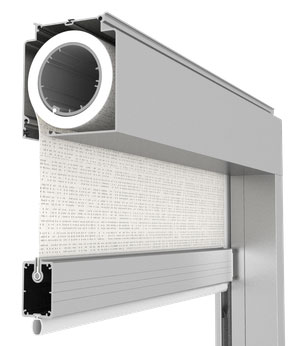

Cassette detail

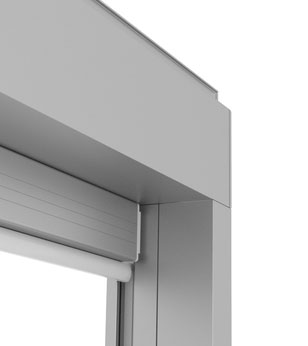

Self-supporting end-caps

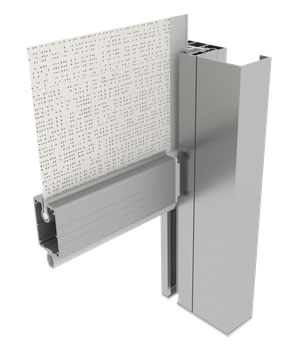

Guide

Standard Optional

Max dimensions in cm

Fabric
Motore - Width x Height	260 x 240
T RAIL - Width x Height	260 x 275
Net
Motore - Width x Height	260 x 240
T RAIL - Width x Height	260 x 275

Self-supporting

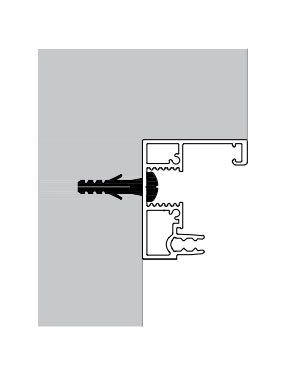

Guide fixing - inset

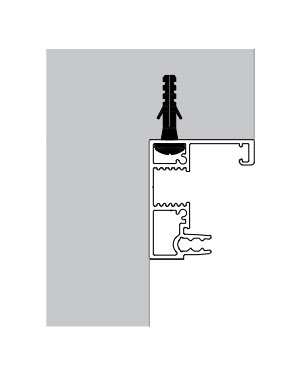

Guide fixing - Front

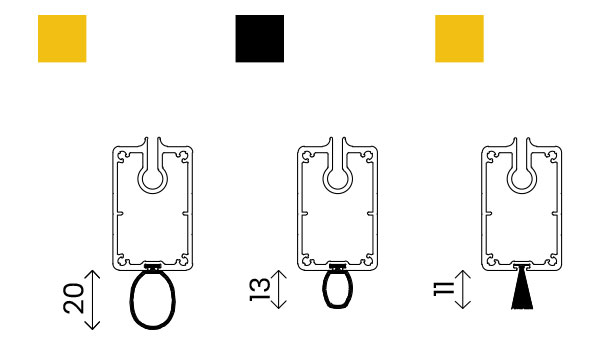

Arrester

Notes

The ZIP system ensures precise sliding and keeps the fabric correctly tensioned. The T-Rail option allows the shading’s behaviour to be further improved in the most demanding configurations.

Colours

Ral 9010 Opaco Matt

Ral 8019 Opaco Matt

White Ral 9016 Matt

Ivory Ral 1013 Matt

Dark Gray Ral 7016

Special colours available upon request. Not all colours are available for all supply options.
