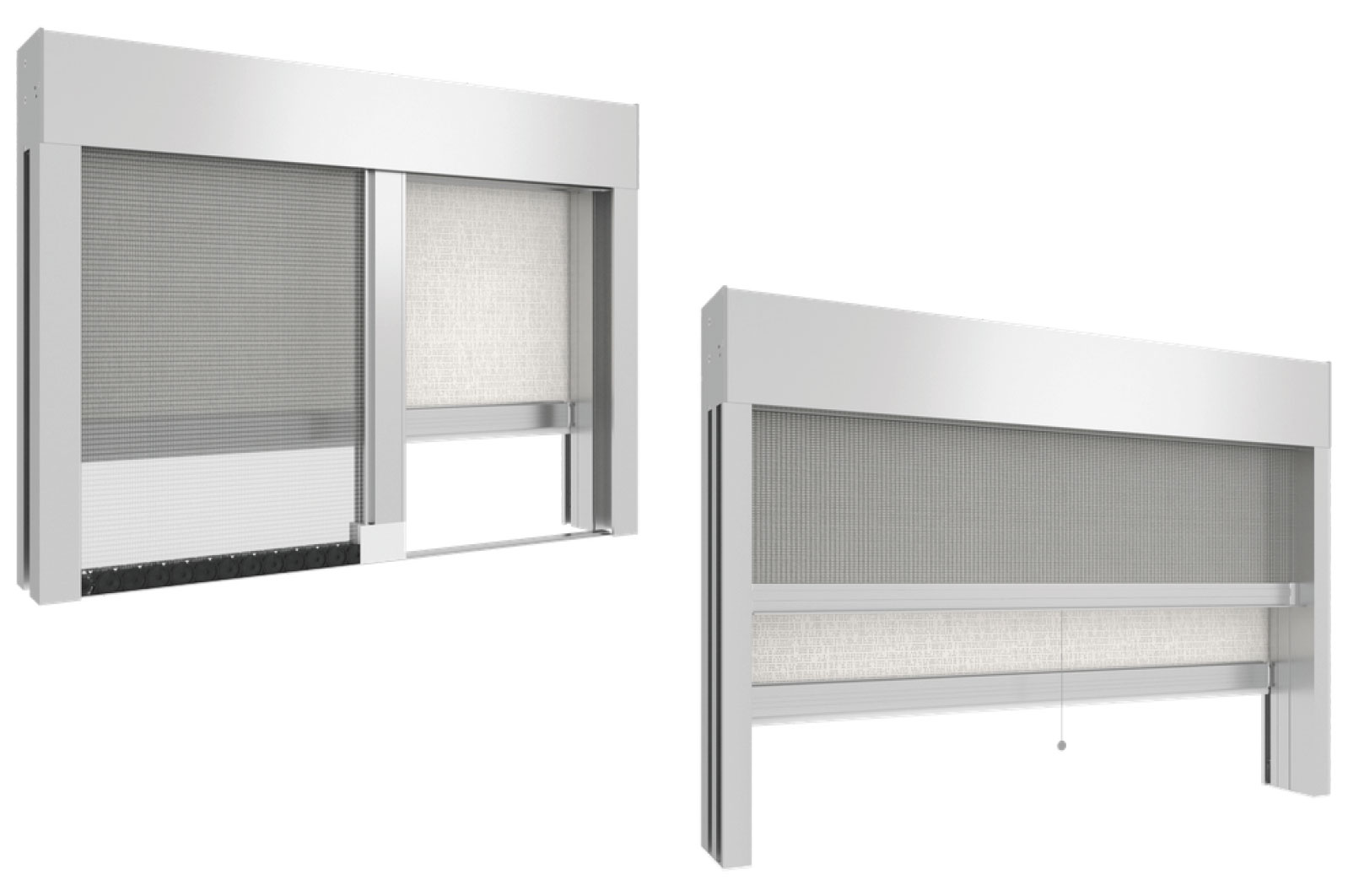

SLS-ZB G

Recessed zip system pre-equipped for the addition of Rollup, Maxxy and Rollblock mosquito net models

Outdoor roller system with ZIP guides and
integrated mosquito net, designed to combine sun protection and insect protection in a solution that can be fully integrated into the architecture.

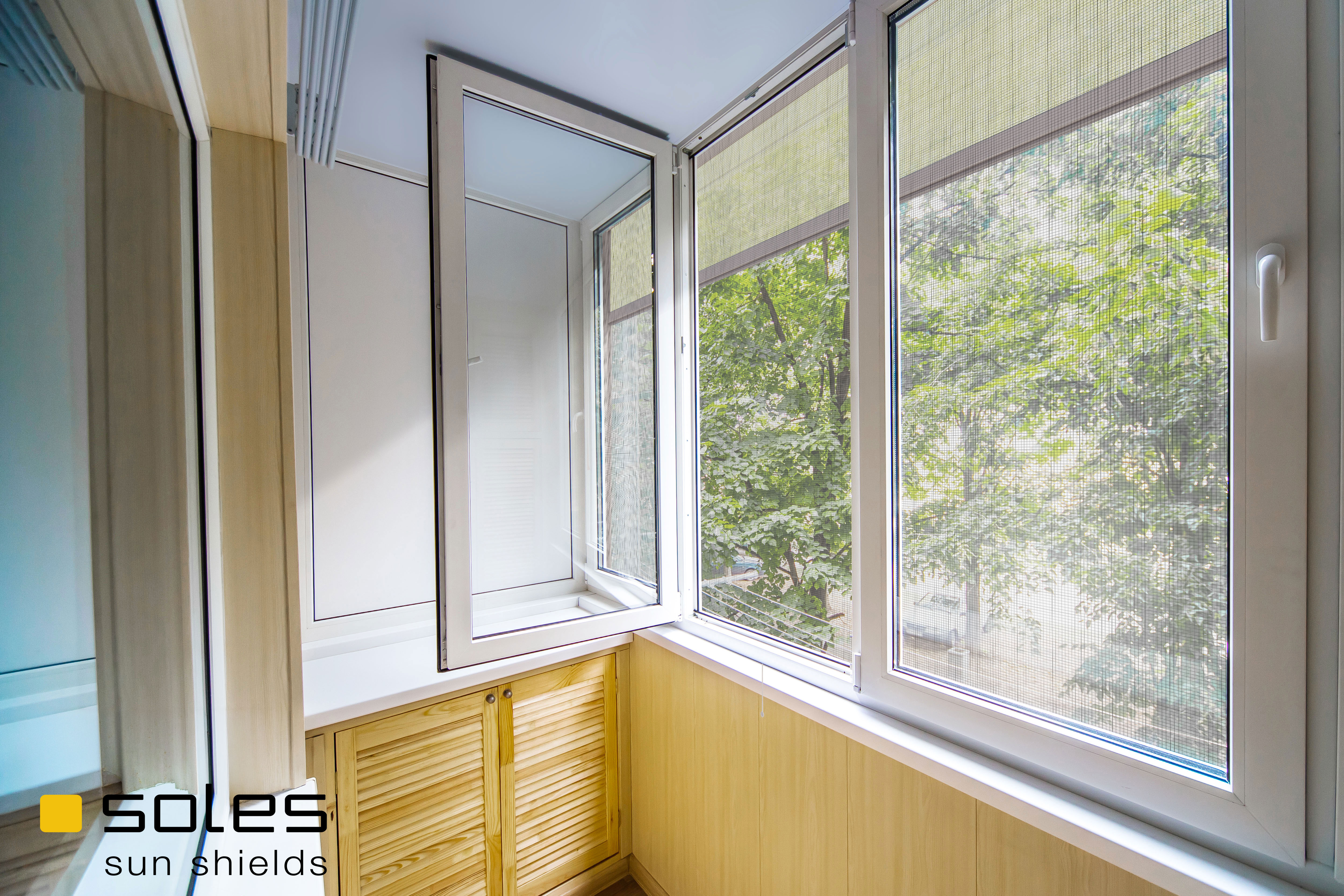

Gallery

L. 450 cm
H. 275 cm

Standard Features

- Motor operation
- Inspectable cassette profile
- Concealed bottom bar
- Self-supporting cassette end-caps

Optional

- Radio motor operation
- Mosquito-net pre-equipment

Bottom bar detail

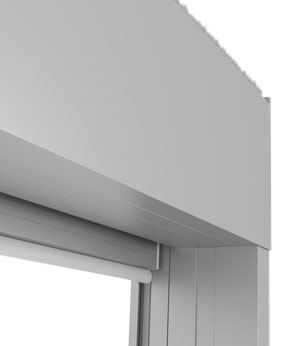

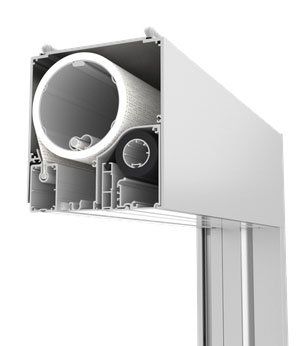

Cassette detail

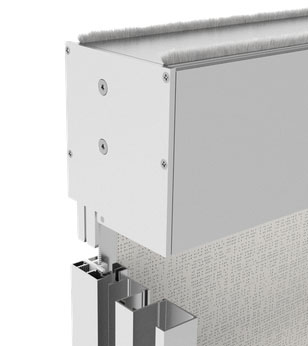

Self-supporting end-caps

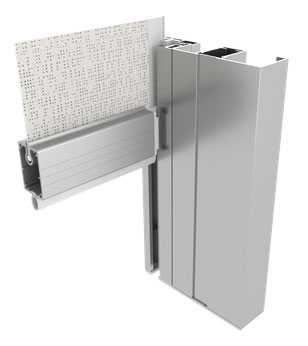

Guide

Standard Optional

Max dimensions in cm

Fabric
Width x Height	450 x 275
Net
Width x Height	450 x 275

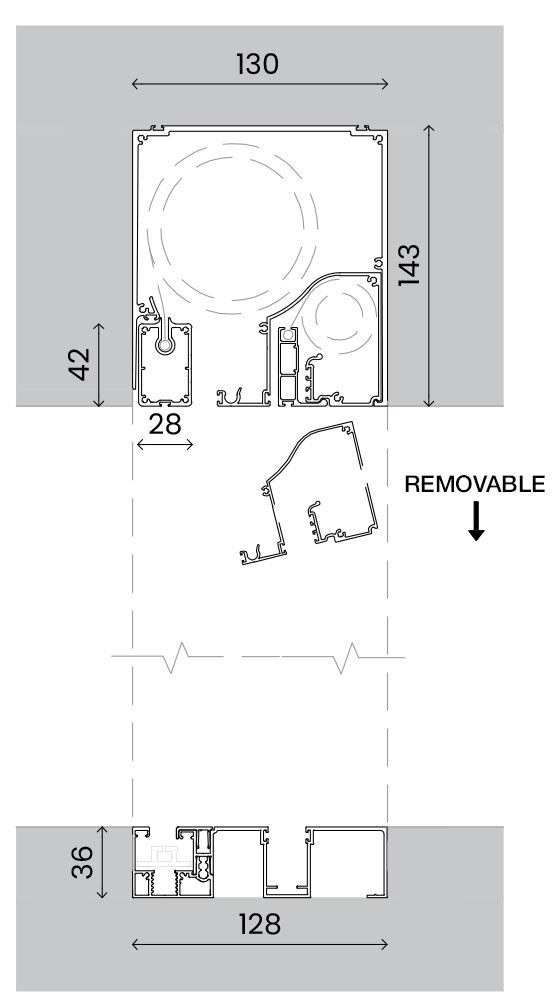

Vertical spring

Rollout Maxxi

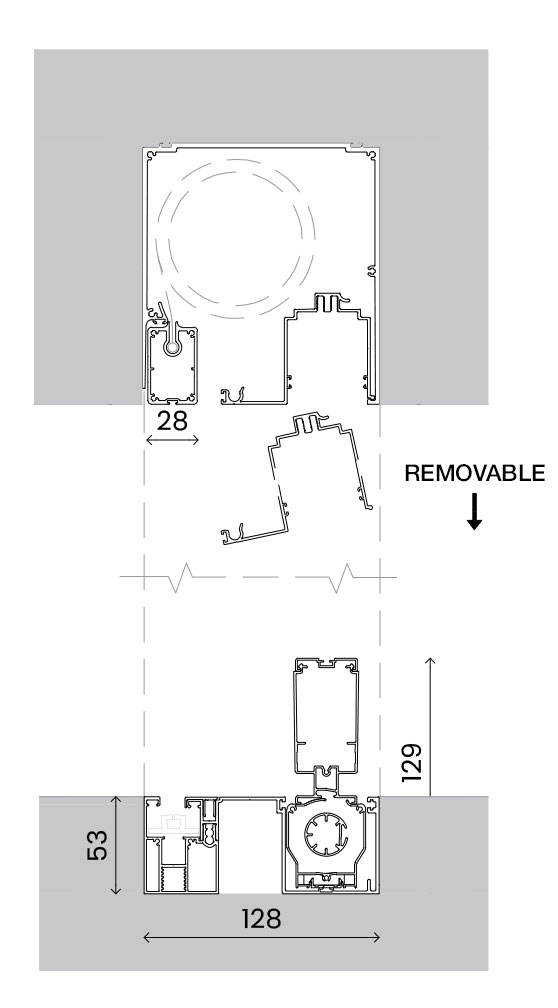

Rollblock

Guide fixing Z53 - inset

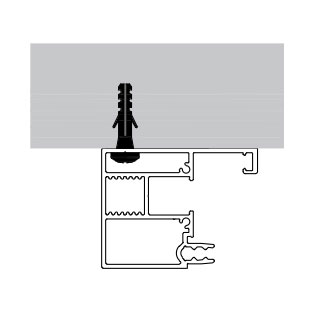

Guide fixing Z53 - Front

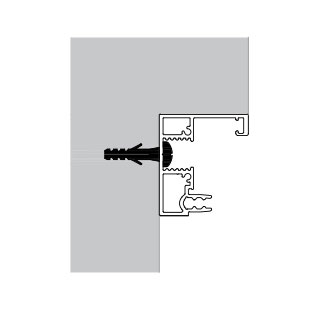

Guide fixing Z35 - inset

Guide fixing Z35 - Front

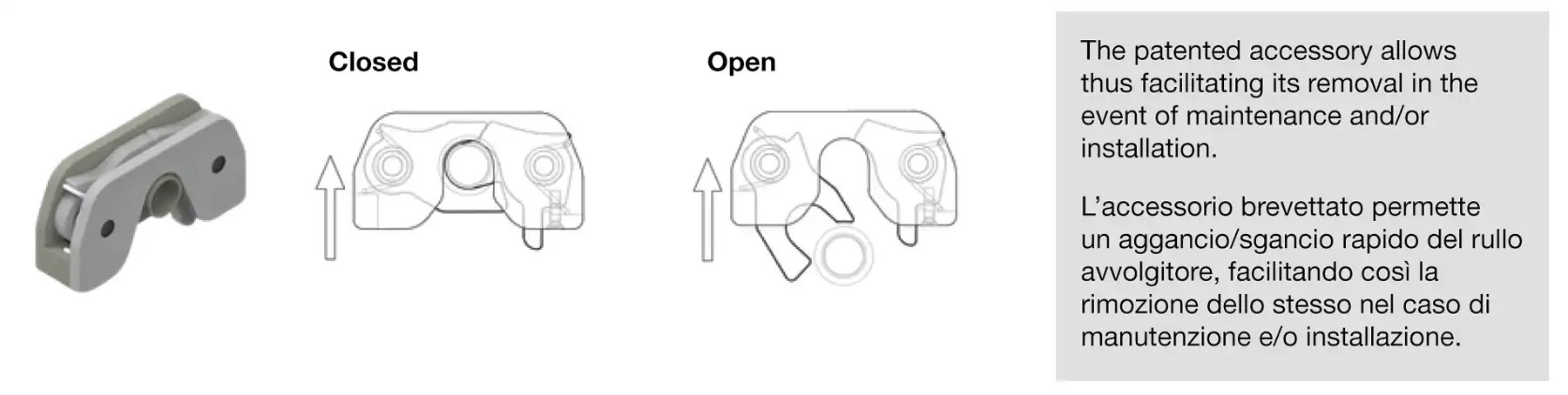

Click Clack support

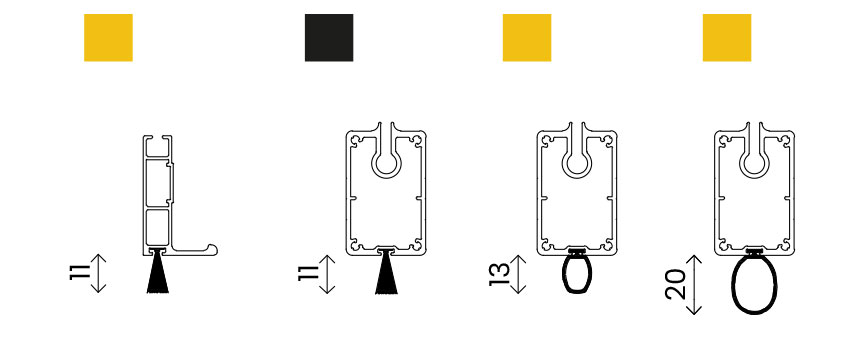

Arrester

Notes

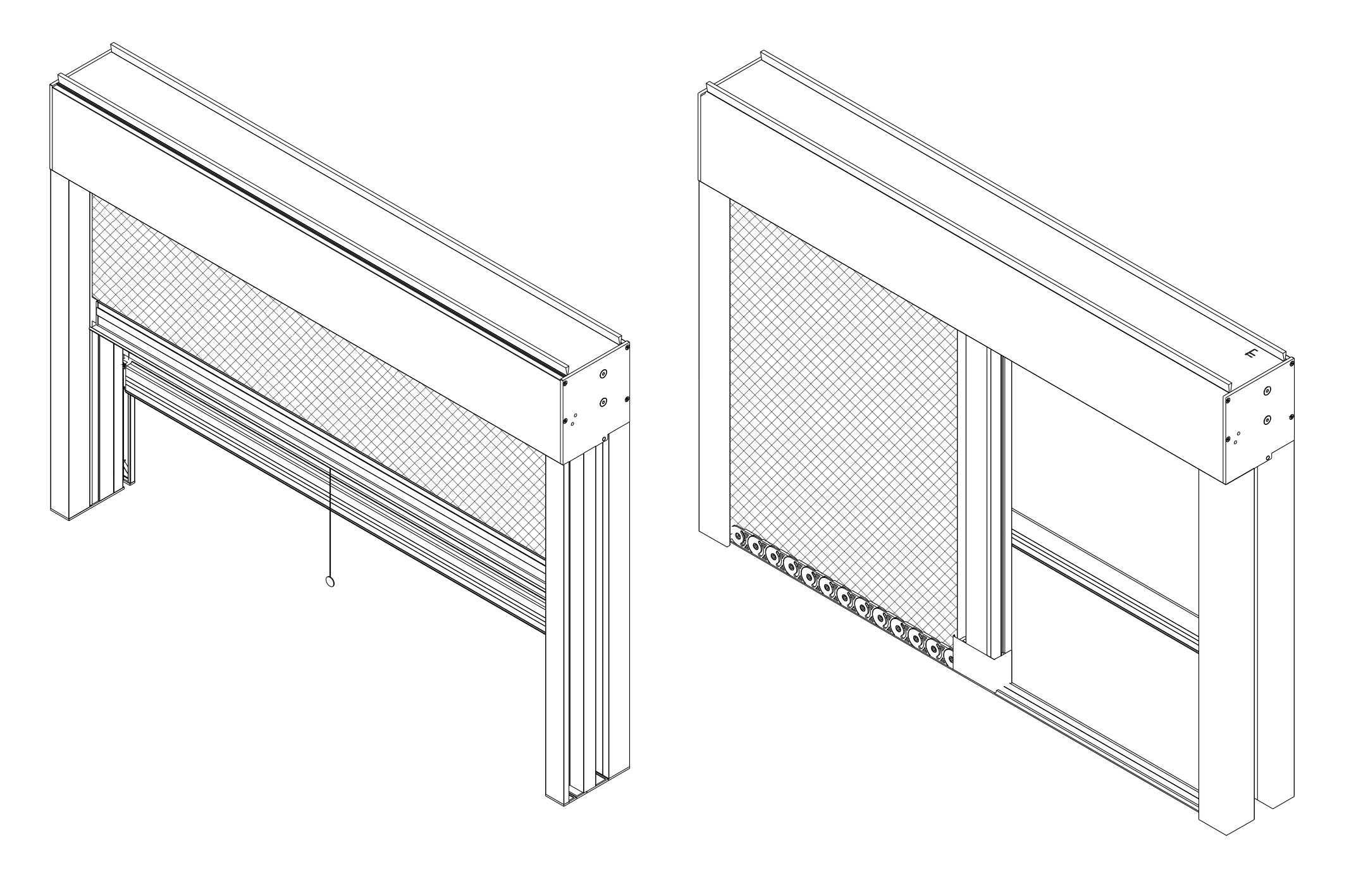

It can in fact be completed with the addition of the exclusive horizontally-opening mosquito nets with a flat floor guide and double-track drive, available in versions with pleated mesh or with flat mesh and a wind-resistant system. Integration with a vertical rollup system is also possible.

Colours

White Ral 9016 Matt

Ral 9010 Opaco Matt

Ral 8019 Opaco Matt

Ivory Ral 1013 Matt

Dark Gray Ral 7016

Special colours available upon request. Not all colours are available for all supply options.
